USW-Pro-48-POE (600W)

Wish List

รหัสสินค้า

USW-Pro-48-POE

USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink

สเปคของสินค้า

40,990.00 ฿

จำนวนสินค้าที่เหลือ สินค้าหมด

เลือกจำนวน

สินค้าหมด

รายละเอียดสินค้า

บริการที่ได้รับ

USW-Pro-48-POE Gen2

>>>รับประกันการใช้งาน 3 ปี<<<

ข้อมูลอุปกรณ์

Datasheet USW-Pro-48-POE Gen2

Mechanical
Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight	Without mounting brackets: 6.2 kg (13.8 lb) With mounting brackets: 6.3 kg (14 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band

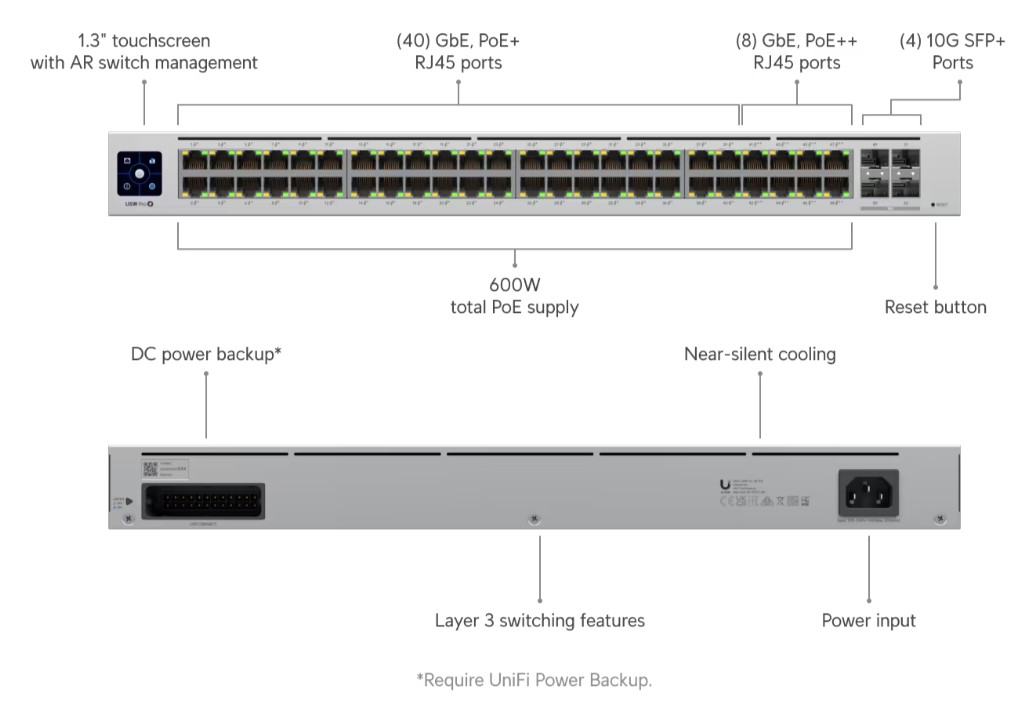

Networking interface	(48) GbE RJ45 ports (4) 1/10G SFP+ ports
PoE interface	(40) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	88 Gbps
Switching capacity	176 Gbps
Forwarding rate	130.944 Mpps
Power method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A
Power supply	AC/DC, internal, 660W
Supported voltage range	100—240V AC
Max. power consumption	60W (Excluding PoE output)
Total available PoE	600W
Max. PoE wattage per port by PSE	PoE+: 32W PoE++: 64W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Shock and vibration	ETSI300-019-1.4 Standard
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System	Status
Ethernet	PoE Speed/link/activity
SFP+	Link/activity
RPS	Status
Application Requirements
UniFi Network	Version 5.10.5 and later
