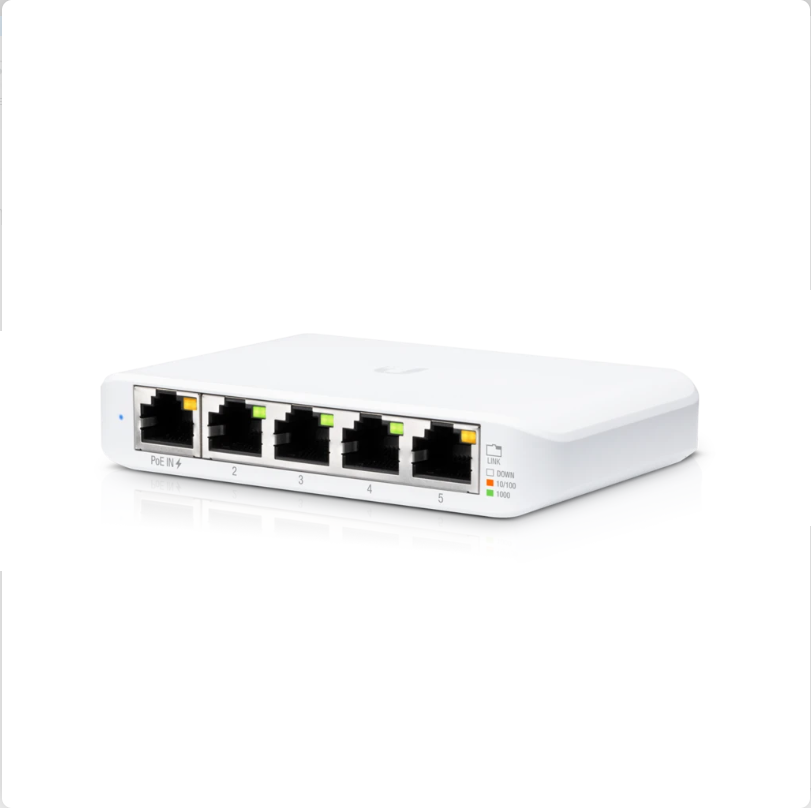

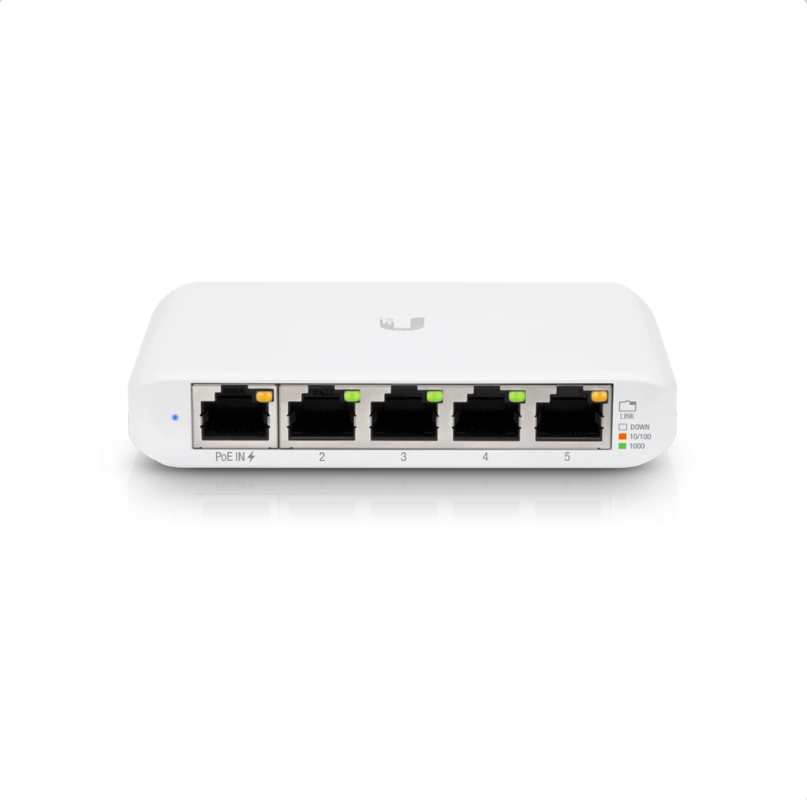

USW-Flex-Mini

Wish List

รหัสสินค้า

USW-Flex-Mini

Switch 5-port, Layer 2
✅5x 10/100/1000 RJ45 ports
✅Poe in port [1] =802.3af/at [options]
✅AdapterUSB Type C[included ]
✅UniFi Network Version 5.12.5 up

สเปคของสินค้า

Sale

1,779.00 ฿ 1,679.00 ฿

จำนวนสินค้าที่เหลือ : 3

เลือกจำนวน

Add to cart

รายละเอียดสินค้า

บริการที่ได้รับ

USW-Flex-Mini
>>>รับประกันการใช้งาน 3 ปี<<<

ข้อมูลอุปกรณ์

Datasheet USW-Flex-Mini

Technical Specifications

USW-Flex-Mini uses port-based VLANs only and does not support SSH, STP (forwarding only), 802.1X, DNS suffix, or experience in the controller

Mechanical

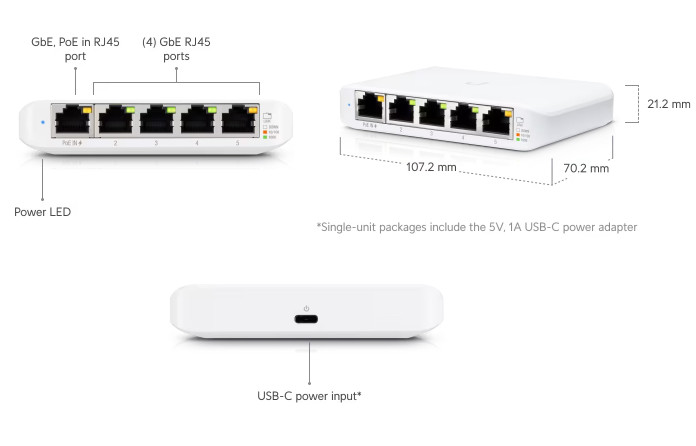

Dimensions	107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Weight	150 g (5.3 oz)
Enclosure material	Polycarbonate
Hardware
Management interface	Ethernet In-Band
Networking interface	(5) GbE RJ45 ports
Total non-blocking throughput	5 Gbps
Switching capacity	10 Gbps
Forwarding rate	7.44 Mpps

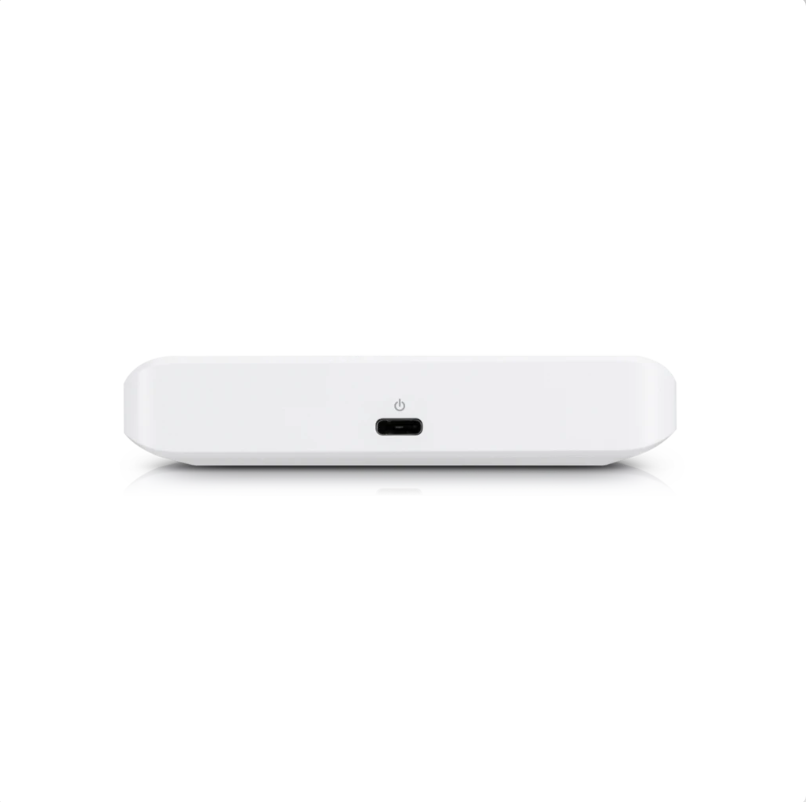

Power method	(1) USB Type C, 5V (1) PoE/PoE+, 44—57V DC, 0.05—0.04A

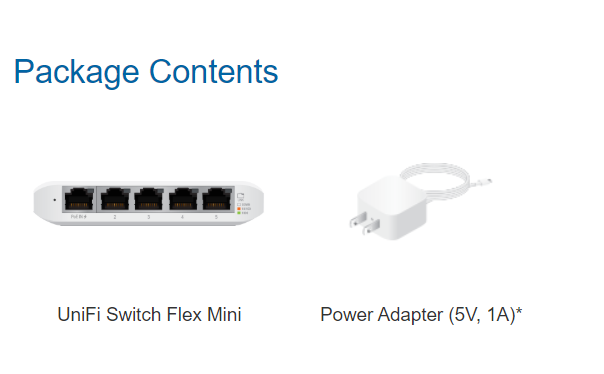

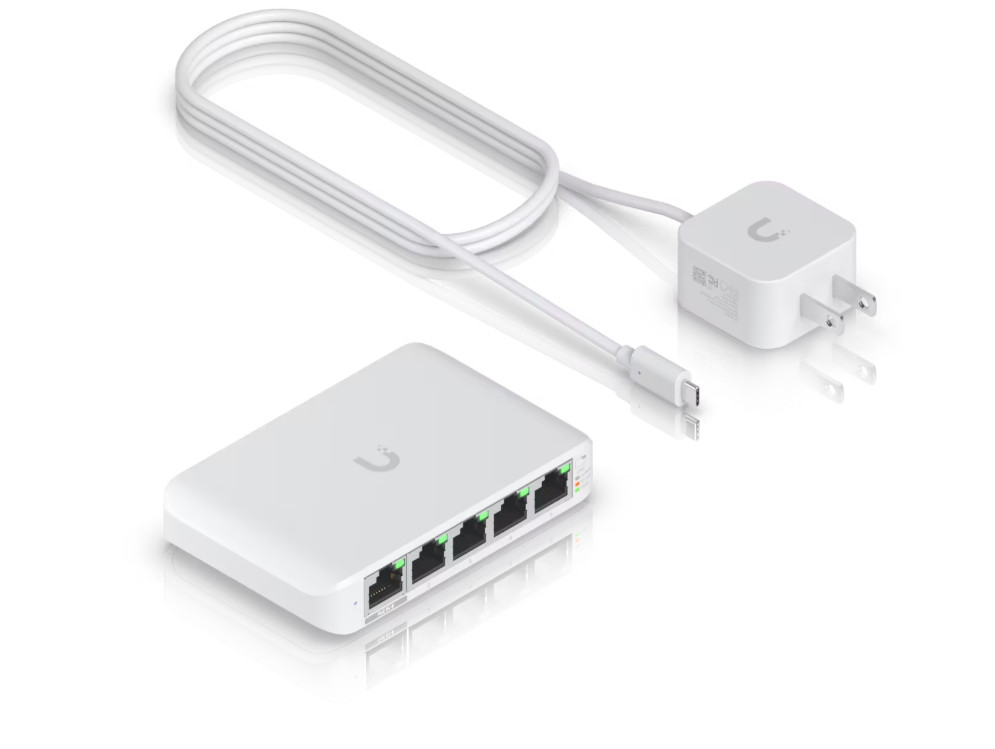

Power supply	5V, 1A power adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter.
Supported voltage range	USB Type C: 4.7—5.3V DC PoE/PoE+: 44—57V DC
Max. power consumption	2.5W
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
Button	Factory reset
Ambient operating temperature	-5 to 45° C (23 to 113° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit
Layer 3 features	–
LEDs
System	Status
Ethernet	Speed/link/activity
Application Requirements
UniFi Network	Version 5.12.5 and later
