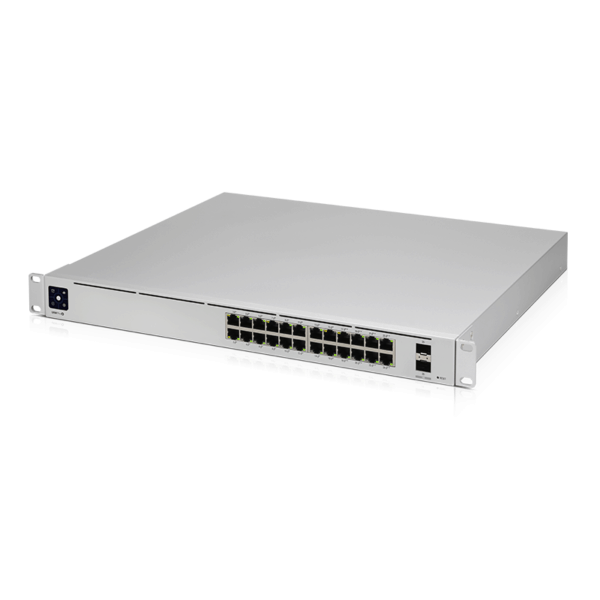

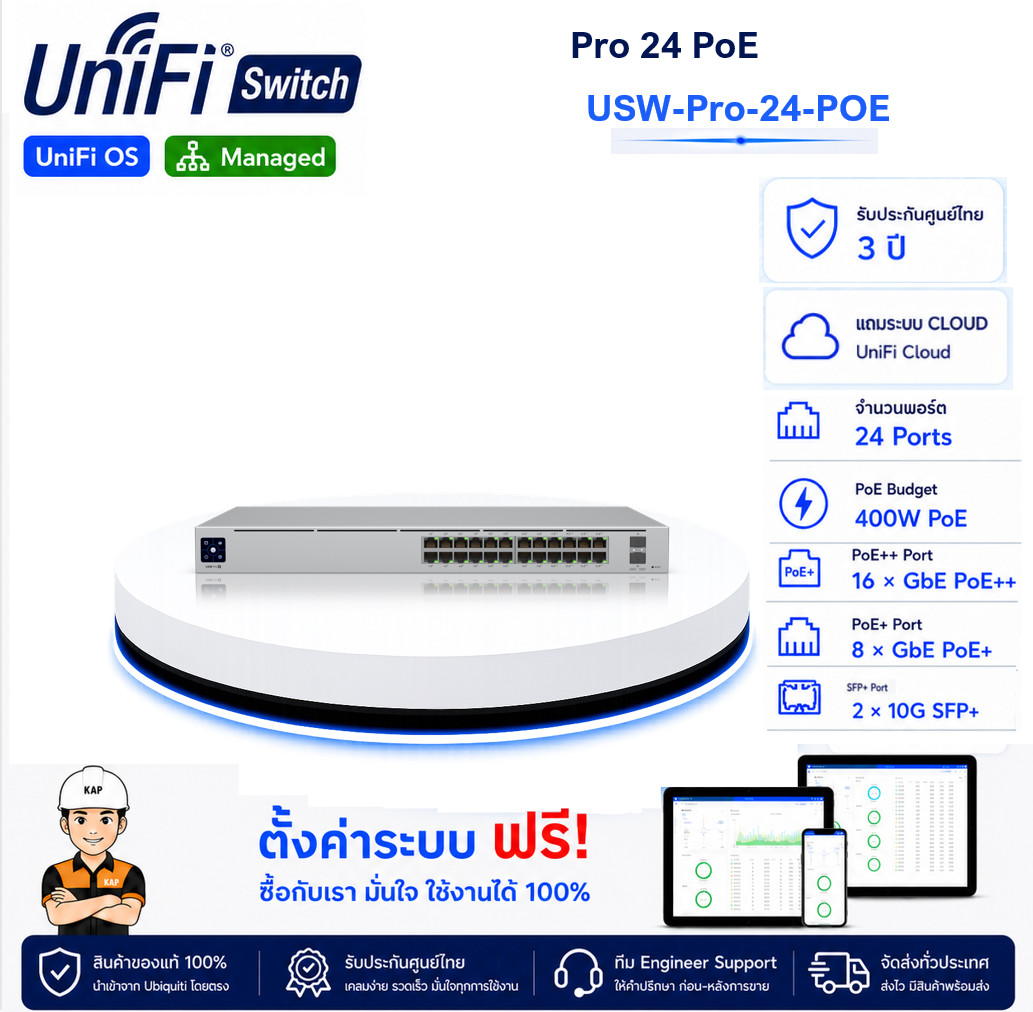

USW-Pro-24-POE (400W)

Wish List

รหัสสินค้า

USW-Pro-24-PoE

24-port, Layer 3 PoE switch.

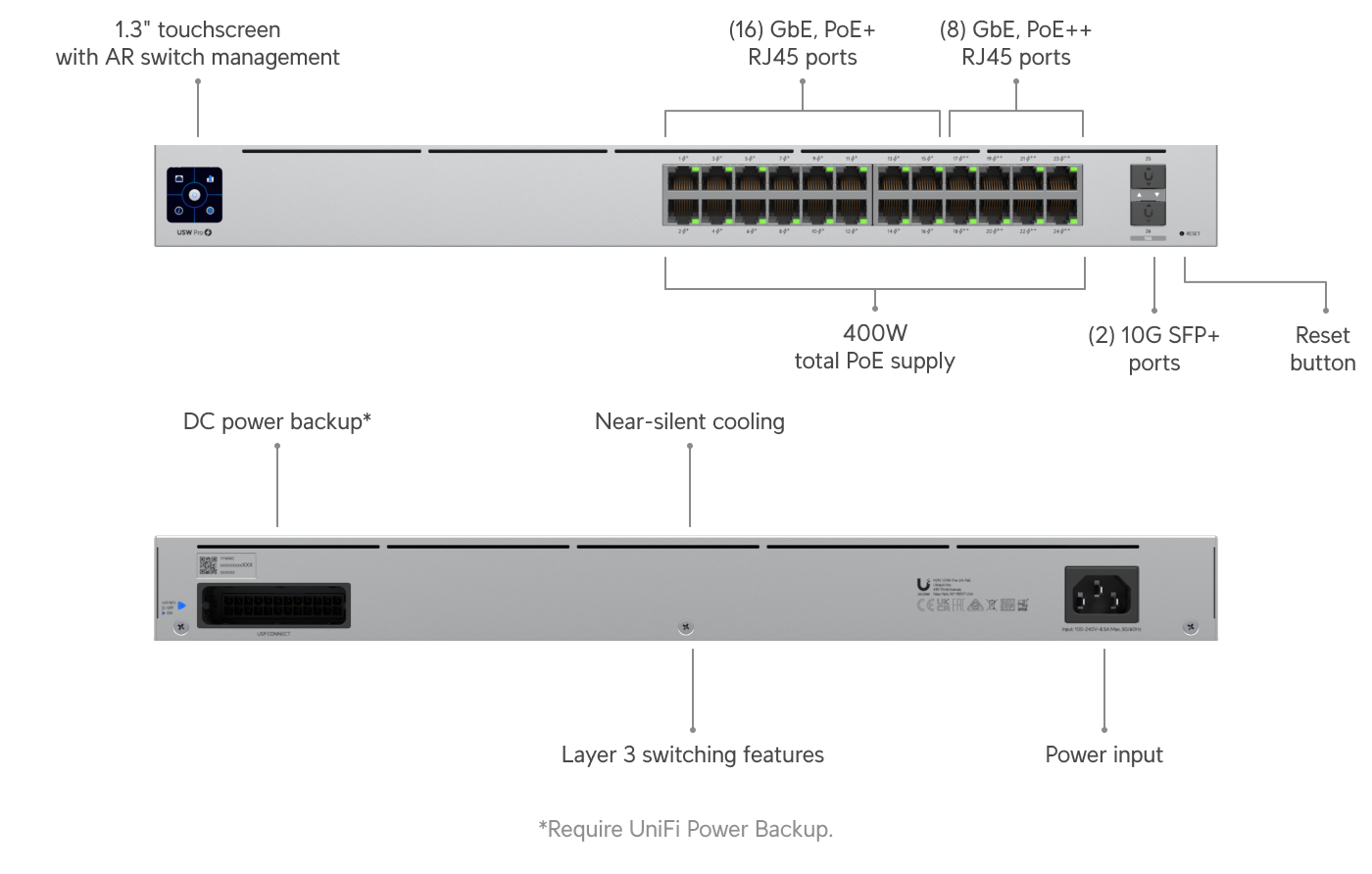

Features:
✅(16) GbE, PoE+ RJ45 ports
✅(8) GbE, PoE++ RJ45 ports
✅(2) 10G SFP+ ports
✅(1) USP RPS DC input for power redundancy
✅400W total PoE availability Managed : Version 5.10.5 and later

สเปคของสินค้า

Sale

26,790.00 ฿ 26,390.00 ฿

จำนวนสินค้าที่เหลือ สินค้าหมด

เลือกจำนวน

Add to cart

รายละเอียดสินค้า

บริการที่ได้รับ

USW-Pro-24-PoE

>>>รับประกัน3 ปี<<<

ข้อมูลอุปกรณ์

Datasheet USW-Pro-24-PoE

ประเภทอุปกรณ์

Technical Specifications

Mechanical
Dimensions	442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight	Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(24) GbE RJ45 ports (2) 1/10G SFP+ ports
PoE interface	(16) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	44 Gbps
Switching capacity	88 Gbps
Forwarding rate	65.472 Mpps

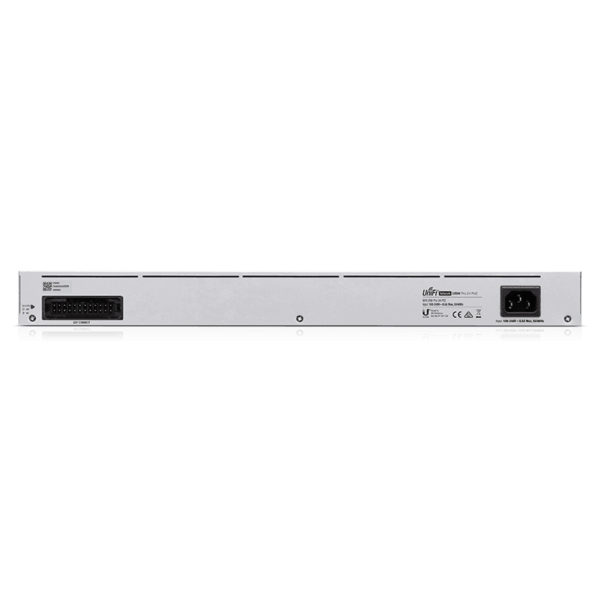

Power method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
Power supply	AC/DC, internal, 450W
Supported voltage range	100—240V AC
Max. power consumption	50W (Excluding PoE output)
Total available PoE	400W
Max. PoE wattage per port by PSE	PoE+: 32W PoE++: 64W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Shock and vibration	ETSI300-019-1.4 Standard
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System	Status
Ethernet	PoE Speed/link/activity
SFP+	Link/activity
RPS	Status
Application Requirements
UniFi Network	Version 5.10.5 and later
