WI-PCMS310GF
คลิกทดลองใช้ระบบ cloud Username: witektest@163.com Password: gd123456@
>>>รับประกันการใช้งาน 3 ปี<<<

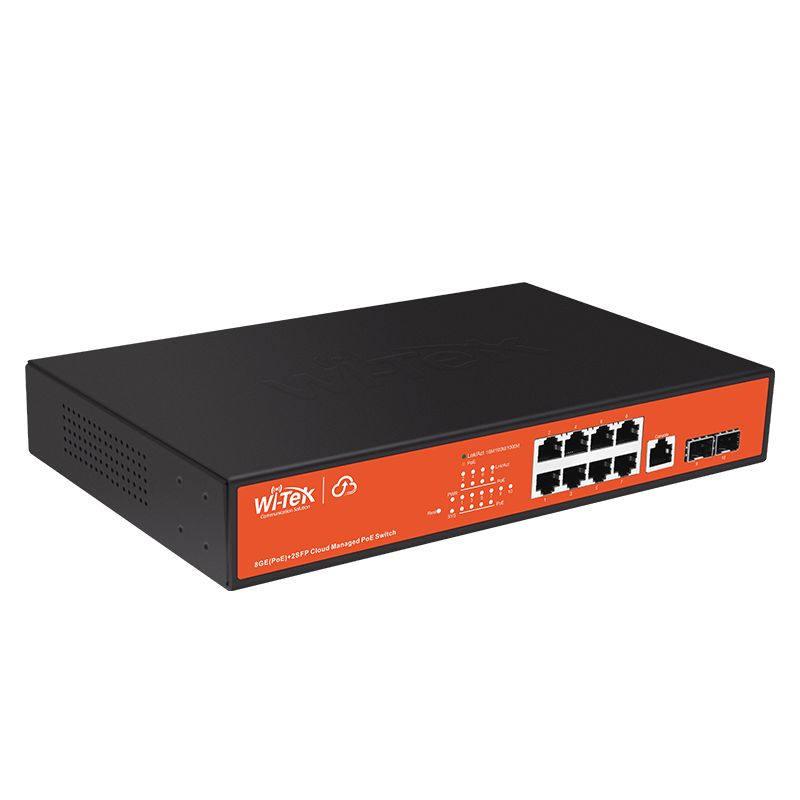

8 Gigabit PoE ports and 2 Gigabit SFP slots
8 802.3af/at PoE ports with a total power supply of 140W
Support cloud management, easy to maintain and manage
Support IGMP Snooping, Link Aggregation, Loop Prevention
QoS and IGMP snooping function optimize voice, video applications
Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities
Hardware Specifications
Hardware Version
V1
Interface
8x10/100/1000Mbps RJ45 Ports 2xGigabit SFP Slots 1xConsole Port
Port Standard
IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber)
PoE
PoE Standard
802.3af/at
PoE Ports
8 up to 32W
PoE Power Budget
140W

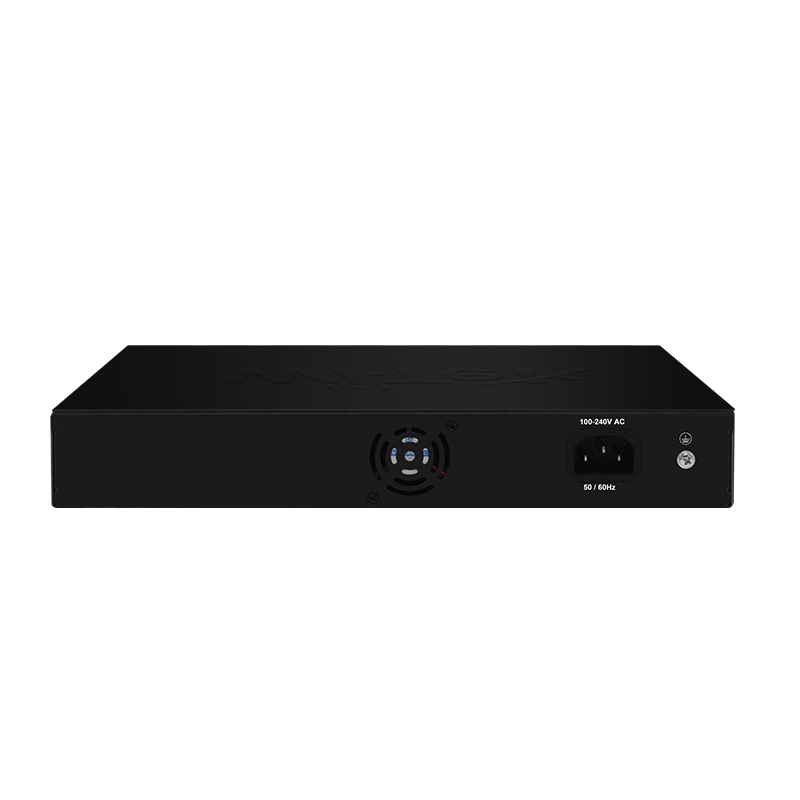

Power Supply
100-240 V AC~50/60 Hz
Switching Capacity
20Gbps
Packet Forwarding Rate
14.88Mpps
Jumbo Frame
9KB
MAC Address Table
8K
Dimensions ( W x D x H )
280*180*44mm
Fan Quantity
1 Fan
Protection Level
Common Mode ± 6KV, Differential Mode ± 4KV
Electrostatic Standard
Contact 6KV Air 8KV
Transmission Mode
Store— Forward
Installation
Rack- Mounted
Software Features
Spanning Tree
IEEE 802.1D - STP
IEEE 802.1w - RSTP
IEEE 802.1s - MSTP
BPDU Guard
STP Root Guard
Loop Detection
VLAN
Management VLAN
Private VLAN
Voice VLAN
Monitor VLAN
Q- in-Q
Protocol- Based VLAN
MAC- Based VLAN
Port
LACP
Static
EEE
Error- Disable
Port mirroring( One-to-One Many-to-One Tx/Rx/Both)
Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group)
Security
Port Isolation
IEEE802.1x AAA
ACL support L2+/L3/ L4 IPv6 ACL
Dynamic ARP Protection
Broadcast Storm
RADIUS/TACACS+
RADIUS Authentication ( RFC2138)
SSH v1.5/v2 .0
Anti- DDoS Attack
DHCP Snooping
QOS
Ipv4 QoS (QCEs)
Ipv6 QoS (QCEs)
Priority Algorithm(WRR ,Absolute Priority, DSCP & CS)
Class of Service(Port- Based ,802.1p CoS DSCP IP Priority, TCP/ UDP IPv4/ IPv6 )
Bandwidth(Input /Output)
L2 M ulticast
IGMP Snooping v1/v2/v3
MLDS nooping v1/v2
MVR
IPV6
Ipv6/IPv4
Ipv6 Web/SSL
Ipv6 SNTP
Ipv6 Telnet/SSH
Ipv6 Ping/Traceroute
Ipv6 TFTP
Ipv6 RADIUS/TACACS+
Ipv6 SNMP
Management
SNMP (v1 , v2c , v3 )
RMON ( 1 , 2 , 3 & 9 )
Firmware Upgrade
Configuration Export/import
DHCP (Option 82, Option 66, Option 67)
System Log Supports Event/Error Log
Manage Access Control( Console Port , SNMP, HTTP/ HTTPS , Telnet)
LLDP ( IEEE802.1AB)
LLDP- MED
UDLD
DNS Client
Traceroute
Ping
DDMI
NTP/ SNTP ( RFC2030)
Advanced Features
ONVIF (ONVIF Detection , ONVIF Server(NLM) )
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Automatic Device Discovery
Support Cloud Management
Support Remote Management
Support Cloud VLAN Configuration
Support Topology Display
Support Cloud Control Port Configuration
Others
Certfication
CE , FCC , RoHS
Package Contents
Gigabit Switch
Power Cord
Quick Installation Guide
Rubber Feet
Environment
Operating Temperature: 0–40 ℃ Storage Temperature: -40– 70 ℃ Operating Humidity: 10– 90% RH non-condensing Storage Humidity: 5– 90% RH non-condensing
