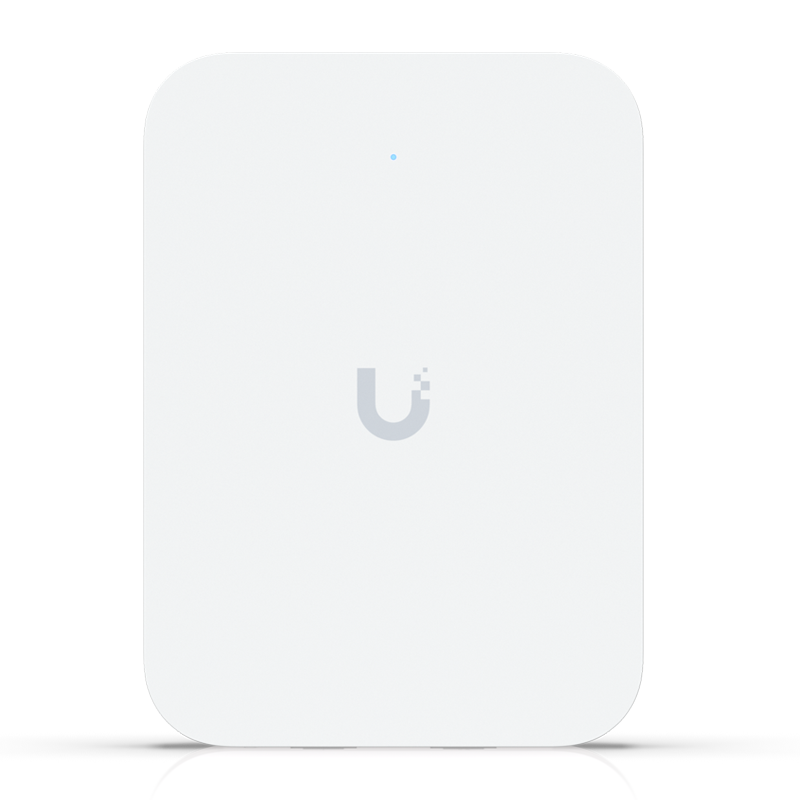

U7 In-Wall[U7-IW]
>>>รับประกันอายุการใช้งาน 3 ปี<<<
ข้อมูลอุปกรณ์
Datasheet U7 In-Wall
Installation Guide
WiFi Standard
WiFi 7
Spatial Streams
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
200+
Uplink
2.5 GbE

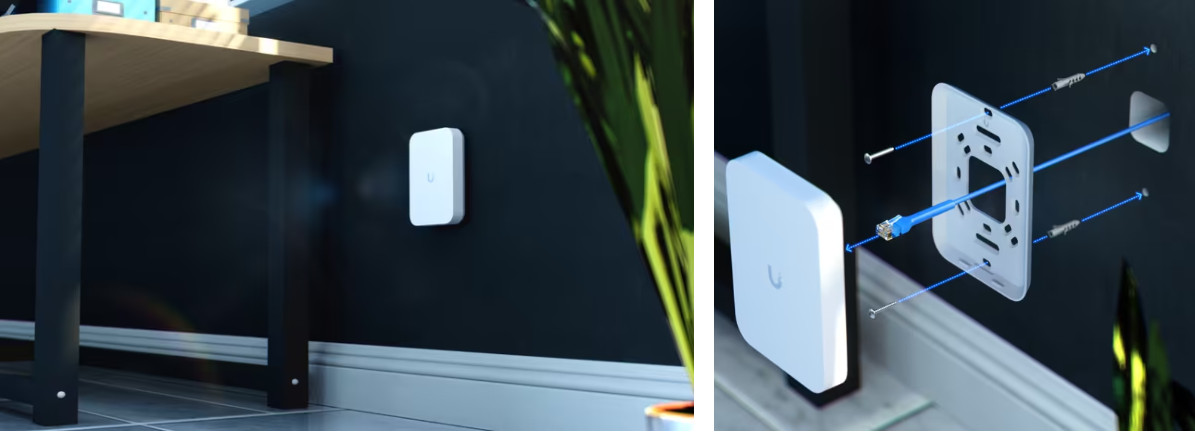

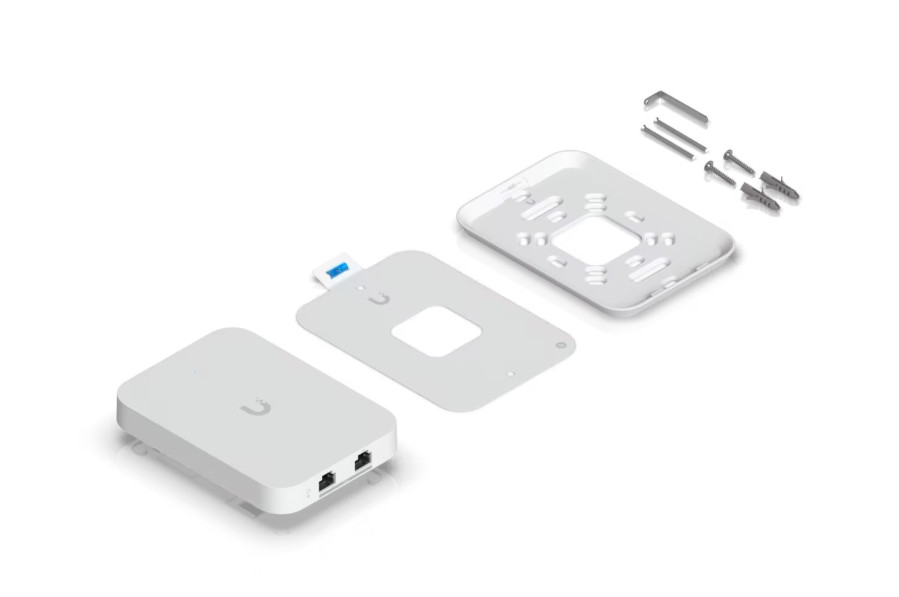

Mounting
Power Method
PoE /PoE+ (Required for PoE output) (Not Included PoE Adapter )ไม่มี Adapterในแพ๊คเกจ/หากต้องการติดต่อAdmin
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
Max. Data Rate
4.3 Gbps (BW160)
688 Mbps (BW40)
Antenna Gain
8 dBi
6 dBi
Max. TX Power
24 dBm
23 dBm
Max.PowerConsumption
13W
SupportedVoltageRange
42.5—57V DC
Built-In Switch

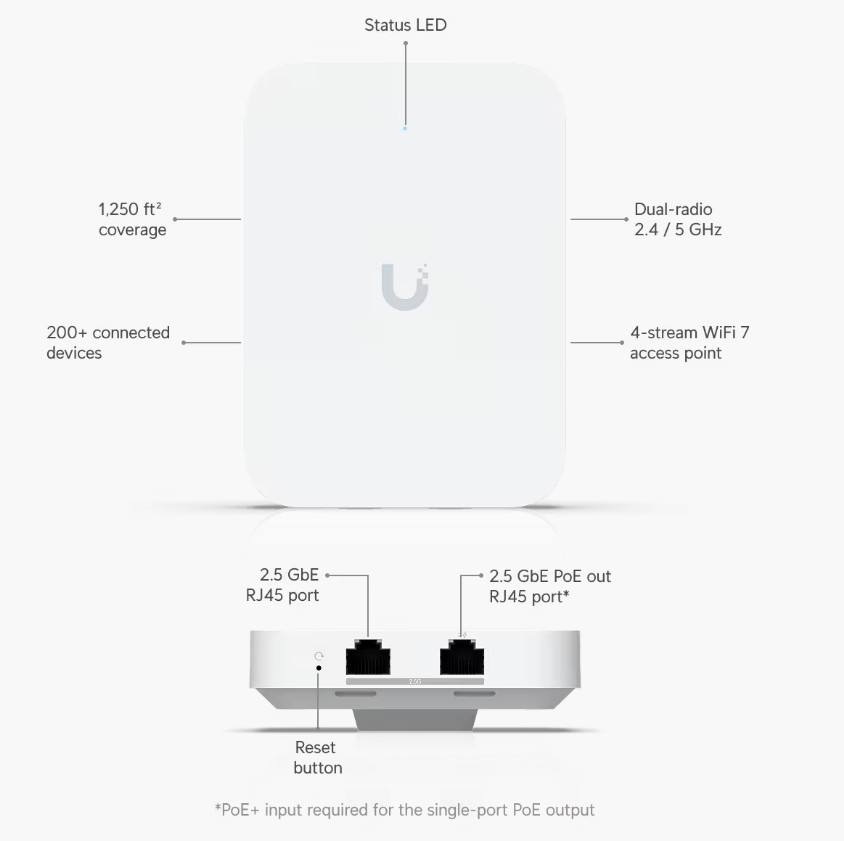

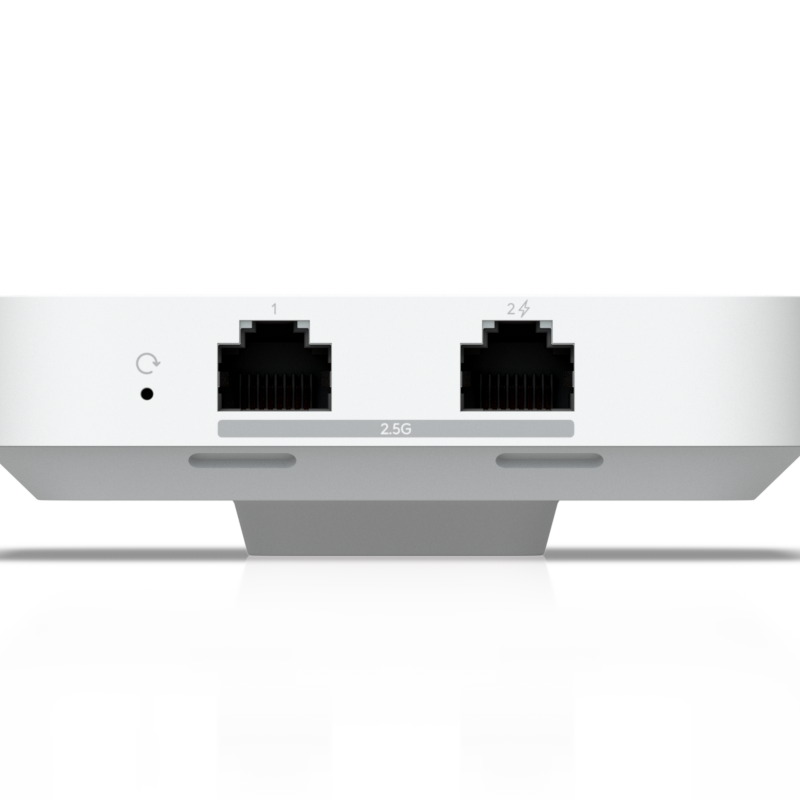

Networking Interface

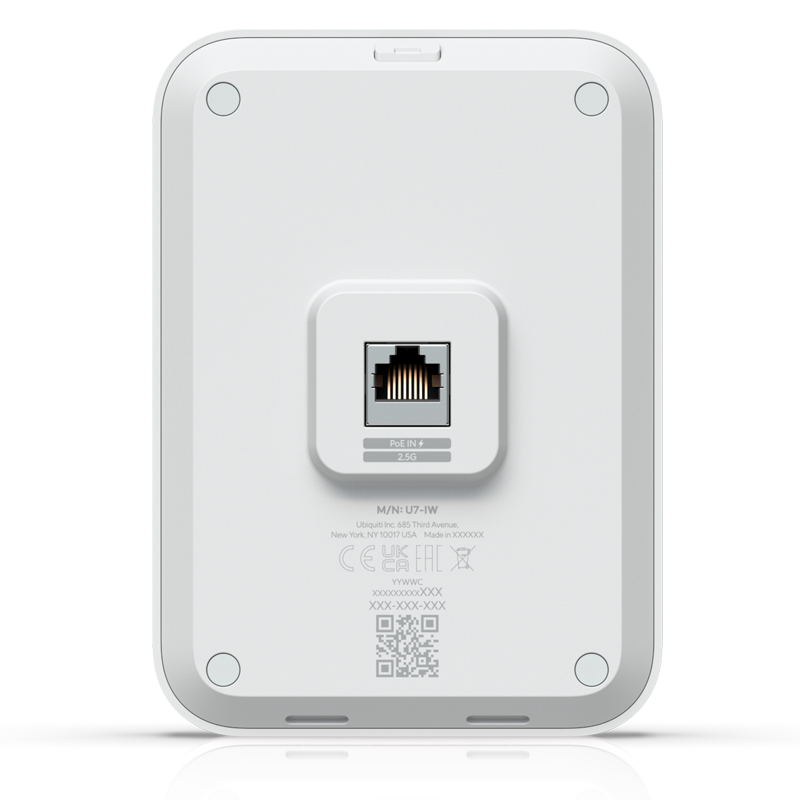

(1) 2.5 GbE RJ45 port
400 g (14.1 oz)
Ethernet
LEDs System
White/Blue
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 9.0.114 and later
Mobile App
