MECHANICAL

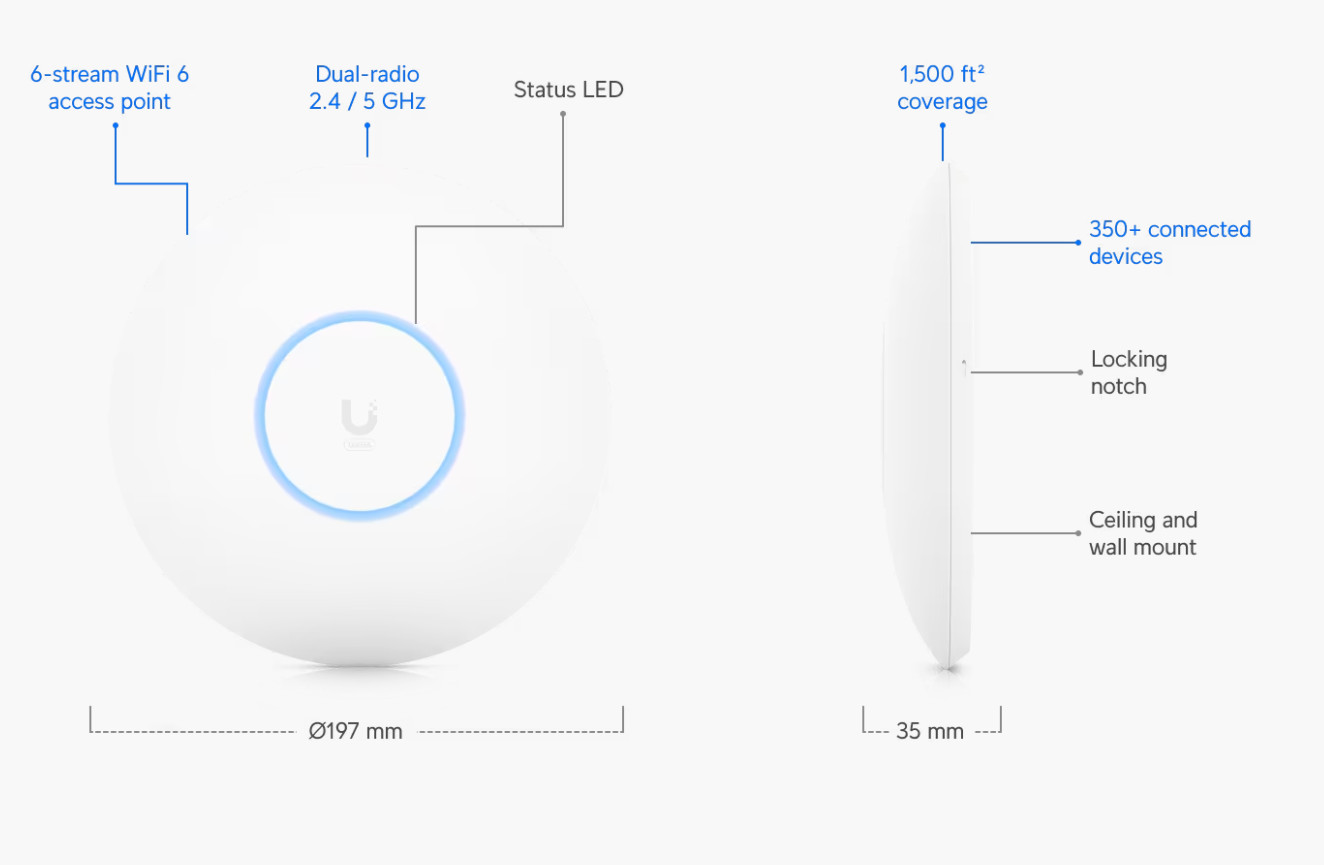

Dimensions

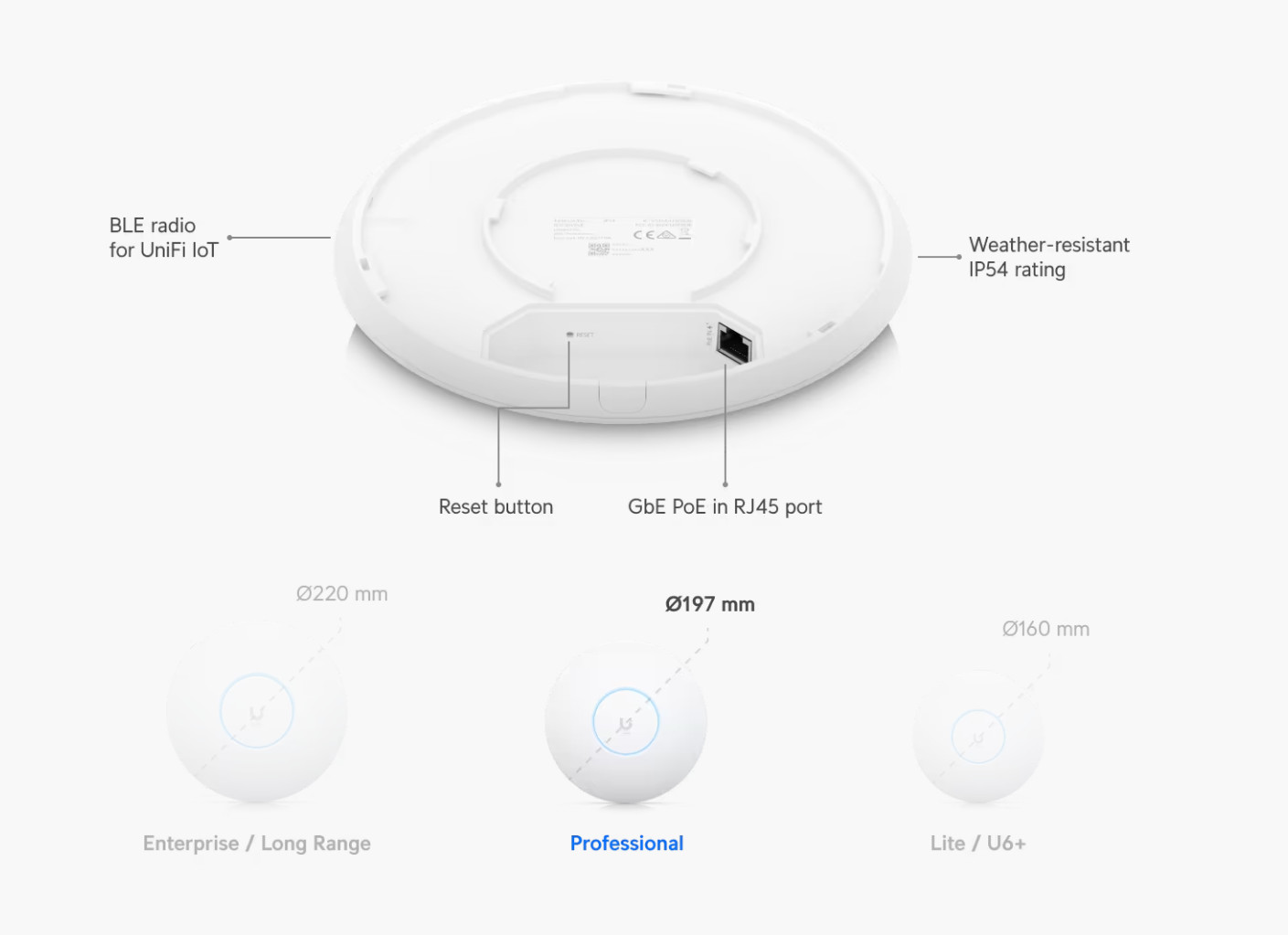

Ø197 x 35 mm (Ø7.76 x 1.38")

Weight

Without Mount: 460 g (1.01 lb)
With Mount: 600 g (1.32 lb)

Enclosure Material

Plastic

Mounting Material

SGCC Steel

Weatherproong

IP54

HARDWARE

Processor Specs

Dual-Core® Cortex® A53 at 1 GHz

Memory Information

512 MB

Management Interface

Ethernet

Networking Interface

(1) 1 Gbps Ethernet RJ45

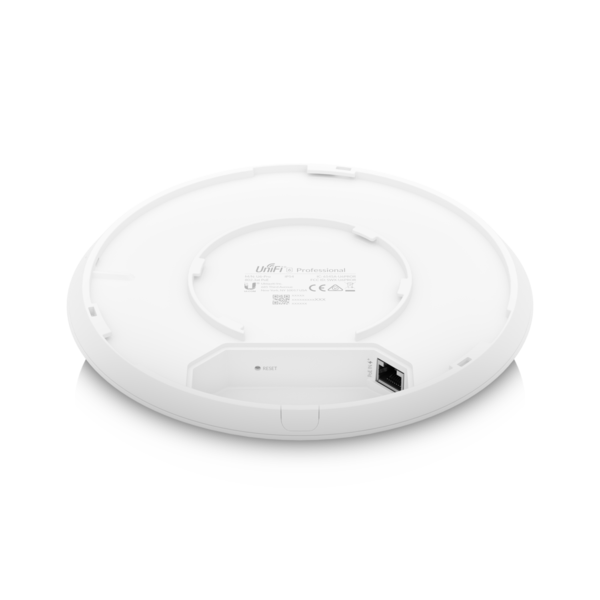

Buttons

Factory Reset

LEDs

RGB

Power Method

PoE+, Passive PoE (48V)

Power Supply

UniFi PoE Switch
48V, 0.5A PoE Adapter (Optional)

Supported Voltage Range

44 to 57VDC

Max. Power Consumption

13W

Max. TX Power

2.4 GHz
5 GHz

-

22 dBm
26 dBm

MIMO
2.4 GHz
5 GHz

-

2 x 2
4 x 4

Throughput Speeds
2.4 GHz
5 GHz

-

573.5 Mbps
4.8 Gbps

Antenna Gain
2.4 GHz
5 GHz

-

4 dBi
6 dBi

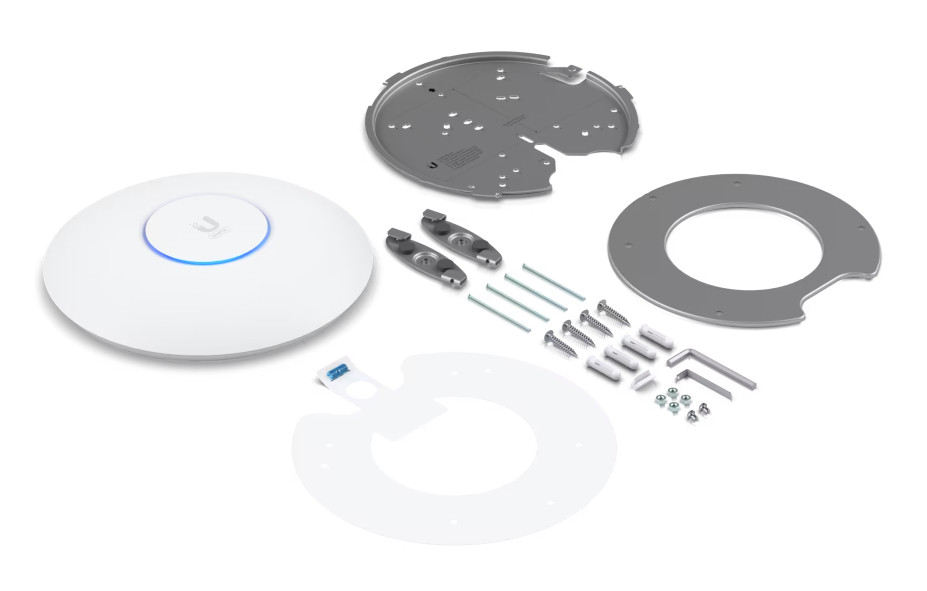

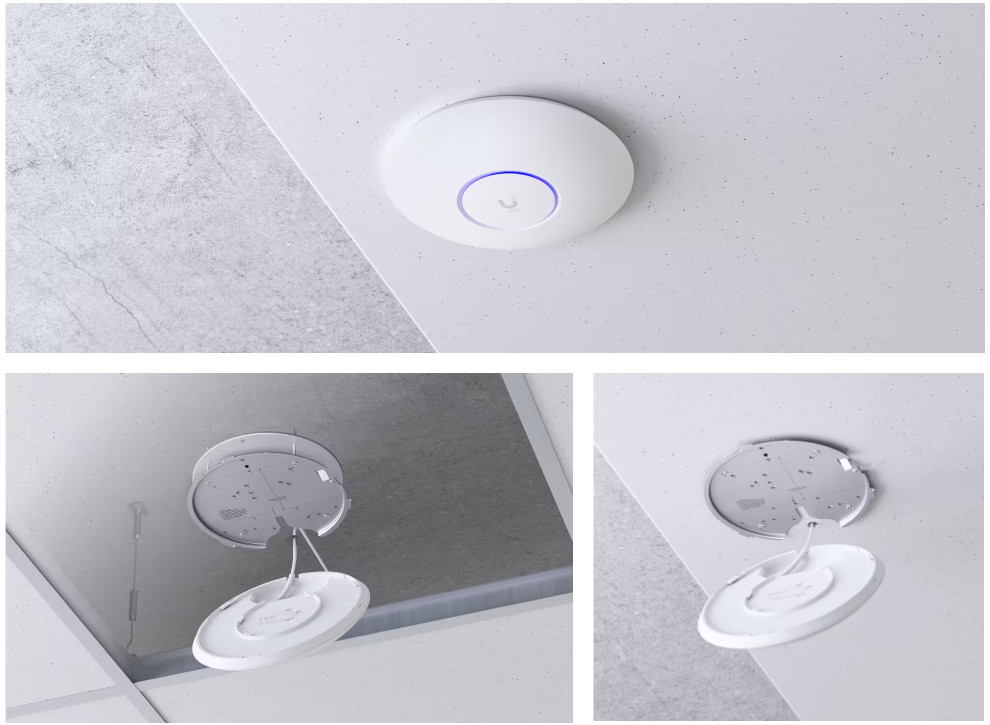

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

-10 to 50° C (14 to 122° F)

Operating Humidity

5 - 95% Noncondensing

Certifications

CE, FCC, IC

SOFTWARE

Wi-Fi Standards

802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)
*Supported With Upcoming Controller Versions

BSSID

8 per Radio

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Trafc Isolation

Supported

Concurrent Clients

350+

Zero Wait DFS

Yes*
*Supported With Upcoming Firmware Versions

SUPPORTED DATA RATES (MBPS)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (Wi-Fi 4)

6.5 Mbps to 400 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (Wi-Fi 5)

6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (Wi-Fi 6)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
