ข้อมูลอุปกรณ์
รอบรับการควบคุมใช้งานผ่านระบบ Cloud ฟรี ตลอดอายุการใช้งาน
Model Specifications
RG-ES205GC-P
RG-ES209GC-P
RG-ES218GC-P

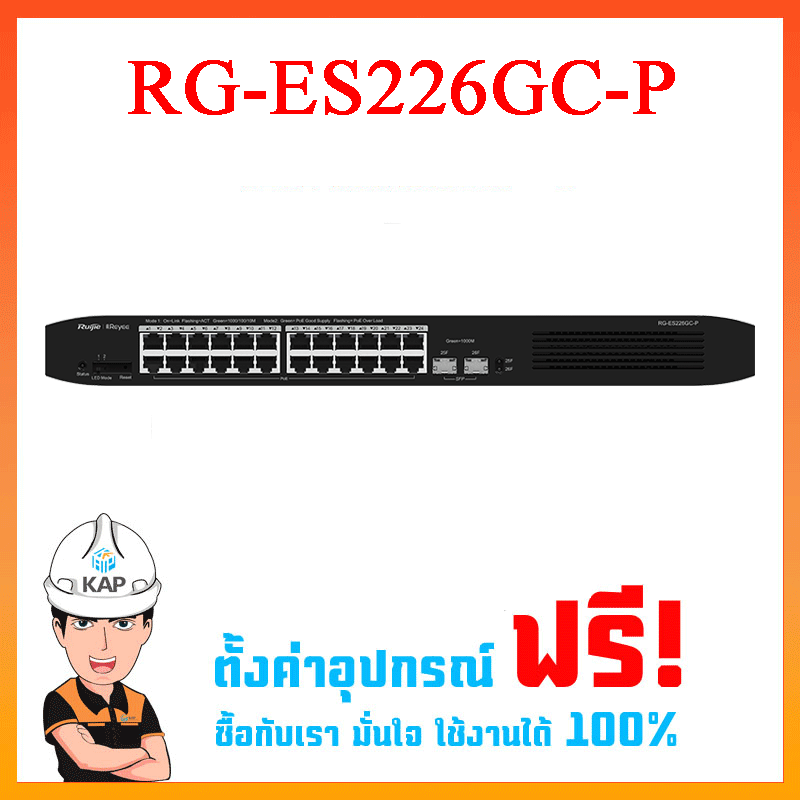

RG-ES226GC-P
Hardware specifications
Ports
4 10/100/1000 Base-T ports (PoE/PoE+), 1 10/100/1000 Base-T port
8 10/100/1000 Base-T ports (PoE/PoE+), 1 10/100/1000 Base-T port
16 10/100/1000 Base-T ports (PoE/PoE+), 2 SFP Base-X ports
24 10/100/1000 Base-T ports (PoE/PoE+), 2 SFP Base-X ports
Maximum output power per PoE port
30W
Maximum PoE output power per switch
54W
120W
240W
370W
Switching capacity
10Gbps
18Gbps
36Gbps
52Gbps
Packet forwarding rate
7.44Mpps
13.392Mpps
26.784Mpps
38.688Mpps
Surge protection
Common mode: 4KV
Electrostatic discharge
Air discharge: 6KV
Contact discharge: 4KV
Power consumption
≤60W
≤130W
≤280W
≤400W
Power supply
External power adapter
Built-in power supply
Dimensions (W x D x H)
148*78*26mm
202*108*28mm
300*230*43.6mm
440x289x43.6mm
MTBF
>200K
Operating environment
Operating temperature
0 to 40°C
Storage temperature
-40~70ºC
Operating humidity
10% to 90% RH
Storage humidity
5% to 95% RH
Software features
MAC capacity
2K
4K
8K
Static MAC address
16
VLAN
Support 802.1Q VLAN
Port management
Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
Security
Support broadcast storm suppression, port speed limit, port isolation
L2 features
Support port mirroring, loop protection, cable detection
Management
Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
