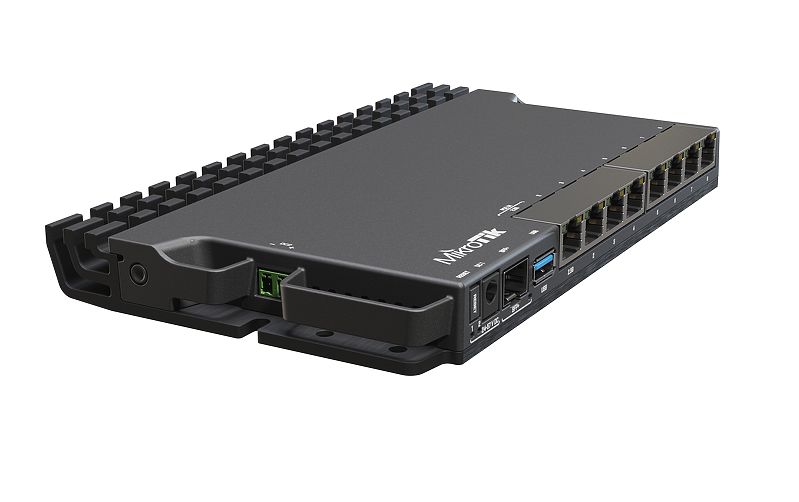

RB5009UPr+S+IN
>>> รับประกันตลอดการใช้งาน <<<
Datasheet
RB5009UPr+S+IN สามารถรองรับ Users Online ได้มากถึง 200+ Clients และ รองรับ Throughput (อินเตอร์เน็ต) ได้ถึง 1Gbps (แบบมีการเขียน Firewall) Mikrotik RB5009UPr+S+IN ฮาร์ดแวร์ รองรับการทำงาน CPU 4 Core และ RAM 1GB มี Interface LANGigabit จำนวน 7 Ports มีความสามารถจ่ายไฟ PoE Out ได้ Ether1 – Ether8 และมี Interface SFP+ 10Gbps ให้อีกด้วย และที่สำคัญรุ่นนี้รองรับ Gigabit Ethernet 2.5Gbps จำนวน 1 Port RB5009UPr+S+IN มีช่อง USB 3.0 type A สามารถเชื่อมต่อ LTE 4G / 5G ก็ได้ และที่สำคัญในกล่องจะแถม Adapter PoE 48v จ่ายไฟได้สูงสุด 96W อุปกรณ์สามารถยึดกับตู้ Rack ได้ แต่ต้องซื้อ RB5009 rackmount kit K-79 เพิ่ม
RB5009UPr+S+IN รองรับ Interface (1) 2.5Gbps Ethernet Port
รองรับ Interface (1) 1/10G SFP+ Ports
รองรับ Interface Gigabit (7) 10/100/1000 Ethernet Port (PoE Out ได้ Ether1 – Ether8)
รองรับ Throughput (อินเตอร์เน็ต) ได้ถึง 1Gbps (แบบมีการเขียน Firewall)
ฮาร์ดแวร์รองรับ RAM 1GB DDR4
รองรับ features Hotspot ; Dynamic Routing ; VPN ; Firewall ; และอื่นๆอีกมากมาย
Details
Product code
Architecture
ARM 64bit
CPU
88F7040
CPU core count
4
CPU nominal frequency
350-1400 (auto) MHz
RouterOS license
5
Operating System
RouterOS
Size of RAM
1 GB
Storage size
Storage type
NAND
MTBF
Approximately 200’000 hours at 25C
Tested ambient temperature
-40°C to 60°C

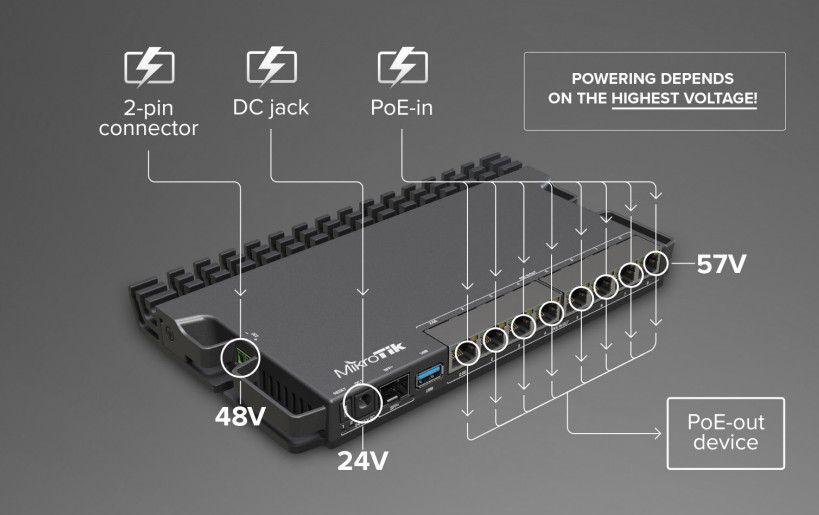

Number of DC inputs
3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage
24-57 V
2-pin terminal input Voltage
Max power consumption
150 W
Max power consumption without attachments
15 W
Cooling type
Passive
PoE in
802.3af/at
PoE in input Voltage
PoE-out ports
Ether1-Ether8
PoE out
Max out per port output (input 18-30 V)
640 mA
Max out per port output (input 30-57 V)
420 mA
Max total out (A)
2.59 A
Total output current
2.28
Total output power
130
10/100/1000 Ethernet ports
7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)
Number of 2.5G Ethernet ports
1
Number of 2.5G Ethernet ports with PoE-out
SFP+ ports
Number of USB ports
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
CPU temperature monitor
Current Monitor
PCB temperature monitor
Voltage Monitor
Certification
CE, EAC, ROHS
IP
20
