Model

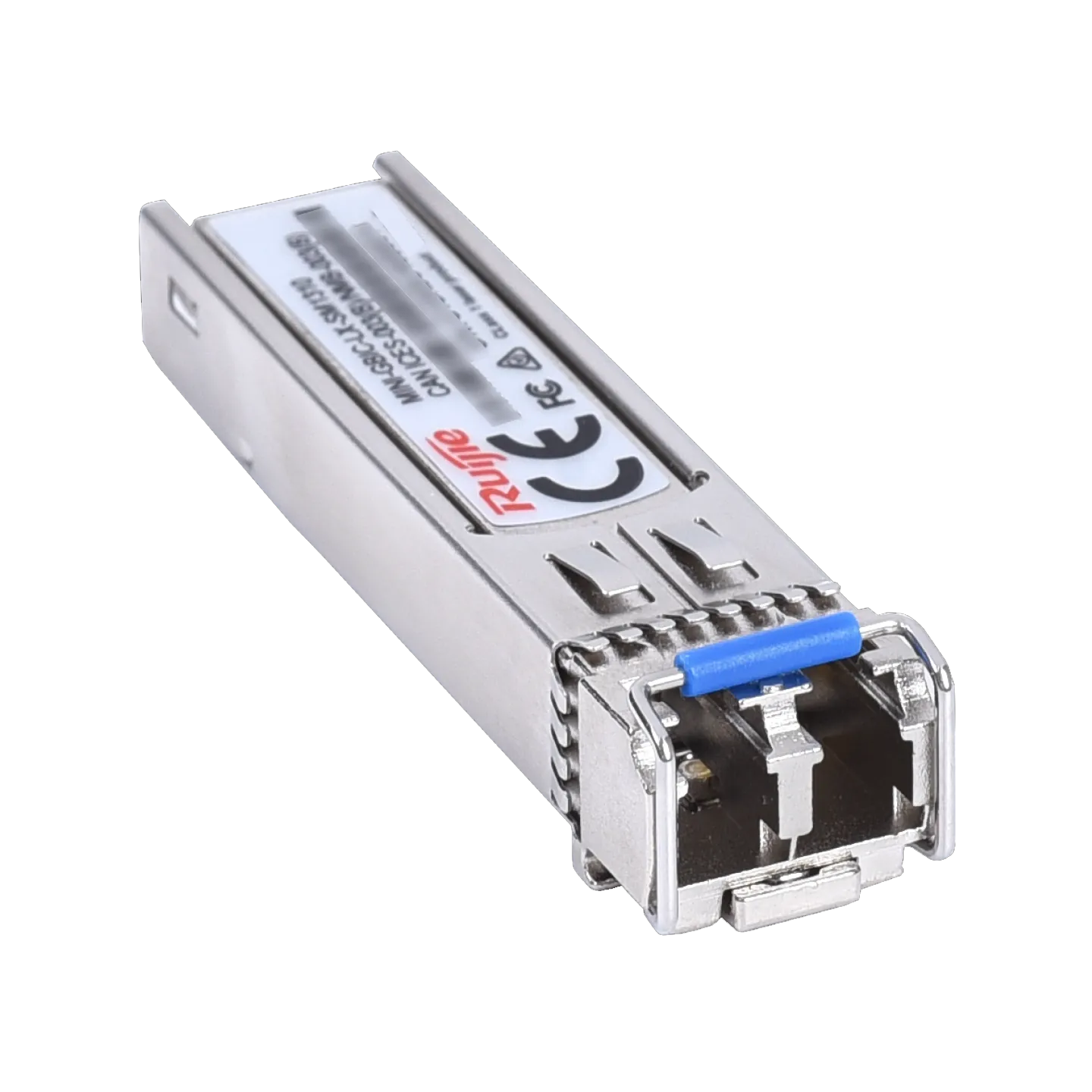

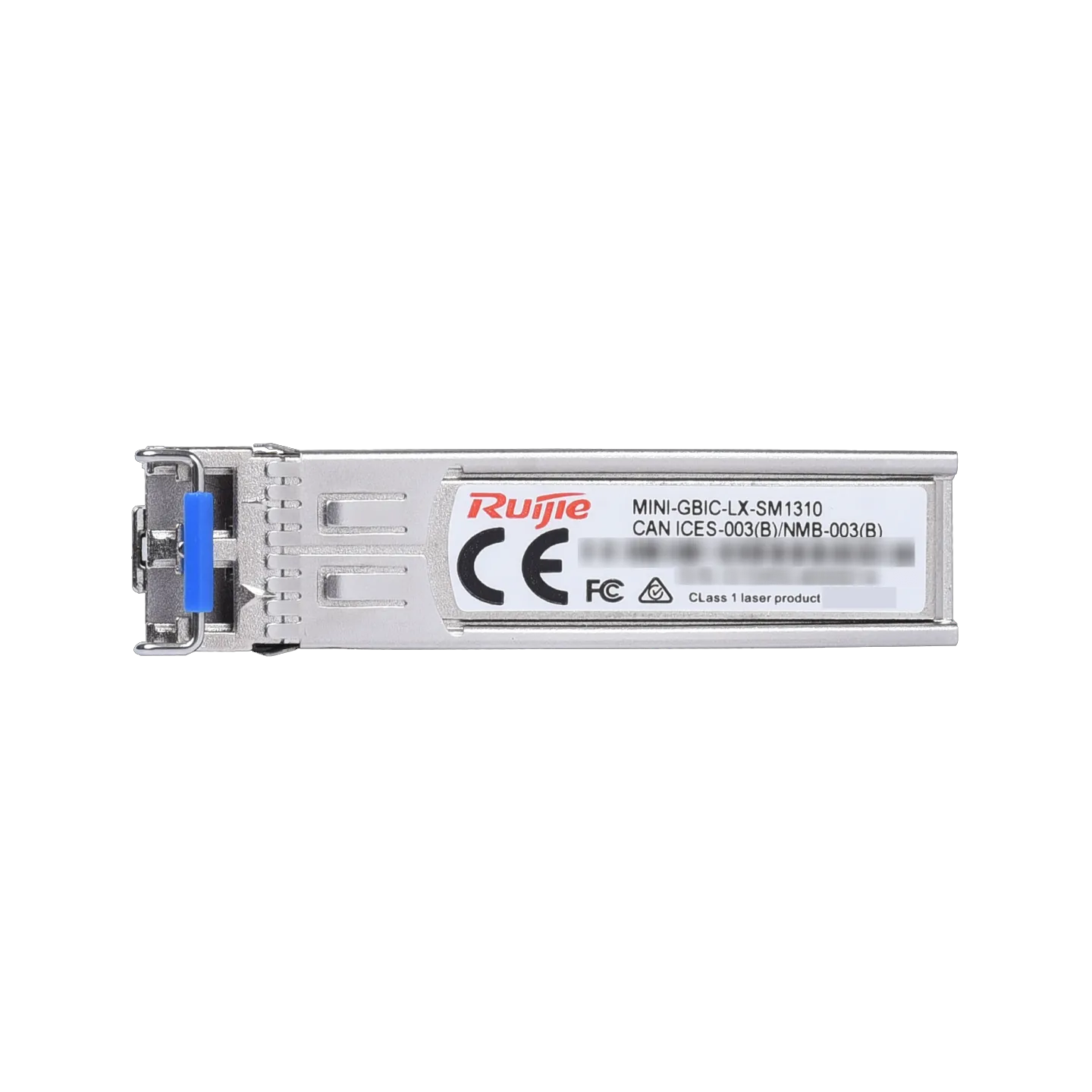

MINI-GBIC-LX-SM1310
Data rate
1.25 Gbps
Form factor
SFP
Connector type
Duplex LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
DFB
Receiver type
PIN
Reach
10 km (32,808.40 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Transmitter Optical Parameters
Wavelength (nm)
1310
Max. transmit power (AVG)
–3 dBm
Min. transmit power (AVG)
–11 dBm
Min. extinction ratio
≥ 9 dB
Receiver Optical Parameters
Receive sensitivity (OMA)
< –19 dBm
Overload optical power (AVG)
Environment and Reliability
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
10% RH to 90% RH
Storage temperature
–40°C to +85°C (–40°F to +185°F)
Storage humidity
Dimensions and Weight
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
