Model

MINI-GBIC-GT

Data rate

1000base-X to 1000base-T

Form factor

SFP

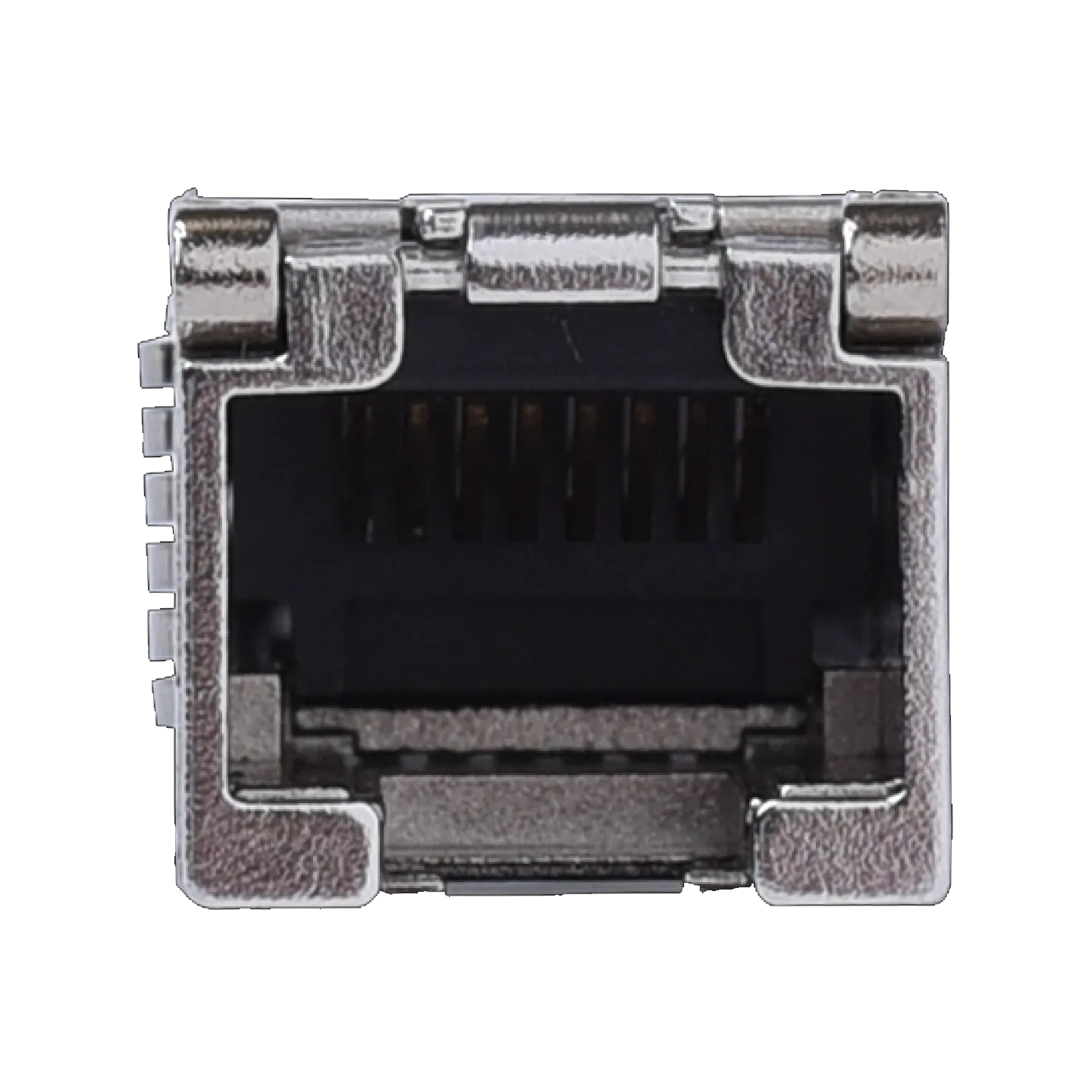

Connector type

RJ45

Cable type

Cat 5e/6/6a

Fiber end face finish type

N/A

Transmitter type

N/A

Receiver type

N/A

Reach

100 m (328.08 ft.)

Bit error ratio (BER)

N/A

Data diagnosis-capable (DDM/DOM)

No

Power consumption

≤ 1.5 W

Transmitter Optical Parameters

Wavelength (nm)

N/A

Max. transmit power (AVG)

N/A

Min. transmit power (AVG)

N/A

Min. extinction ratio

N/A

Receiver Optical Parameters

Receive sensitivity (OMA)

N/A

Overload optical power (AVG)

N/A

Environment and Reliability

Operating temperature

0°C to 70°C (32°F to 158°F)

Operating humidity

10% RH to 90% RH

Storage temperature

–40°C to +85°C (–40°F to +185°F)

Storage humidity

10% RH to 90% RH

Dimensions and Weight

Dimensions (W x D x H)

56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)

Weight

35 g (0.08 lbs.)
