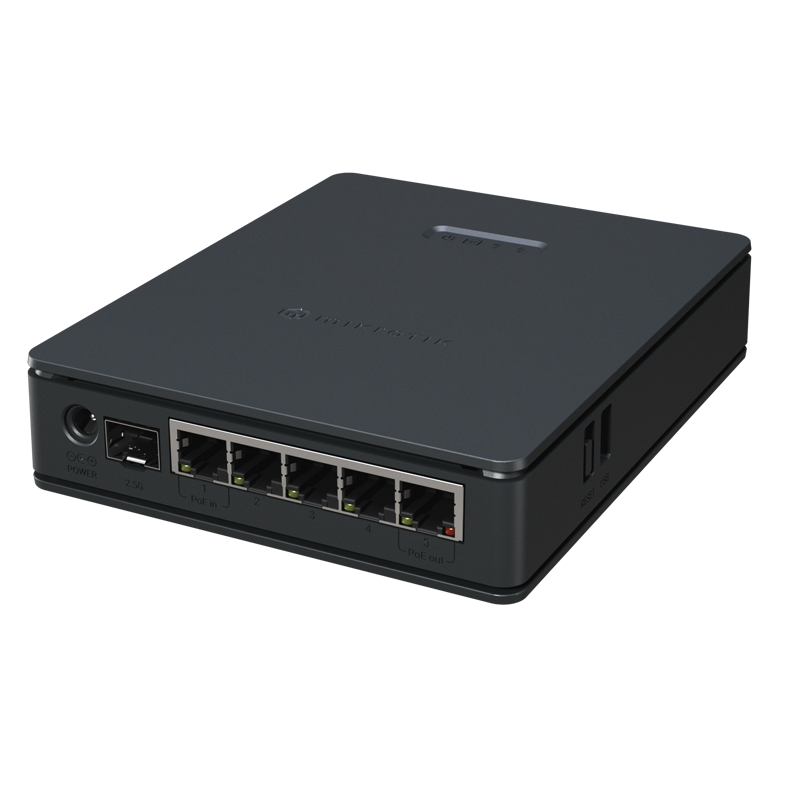

hAP ax S[E62iUGS-2axD5axT]

Datasheet

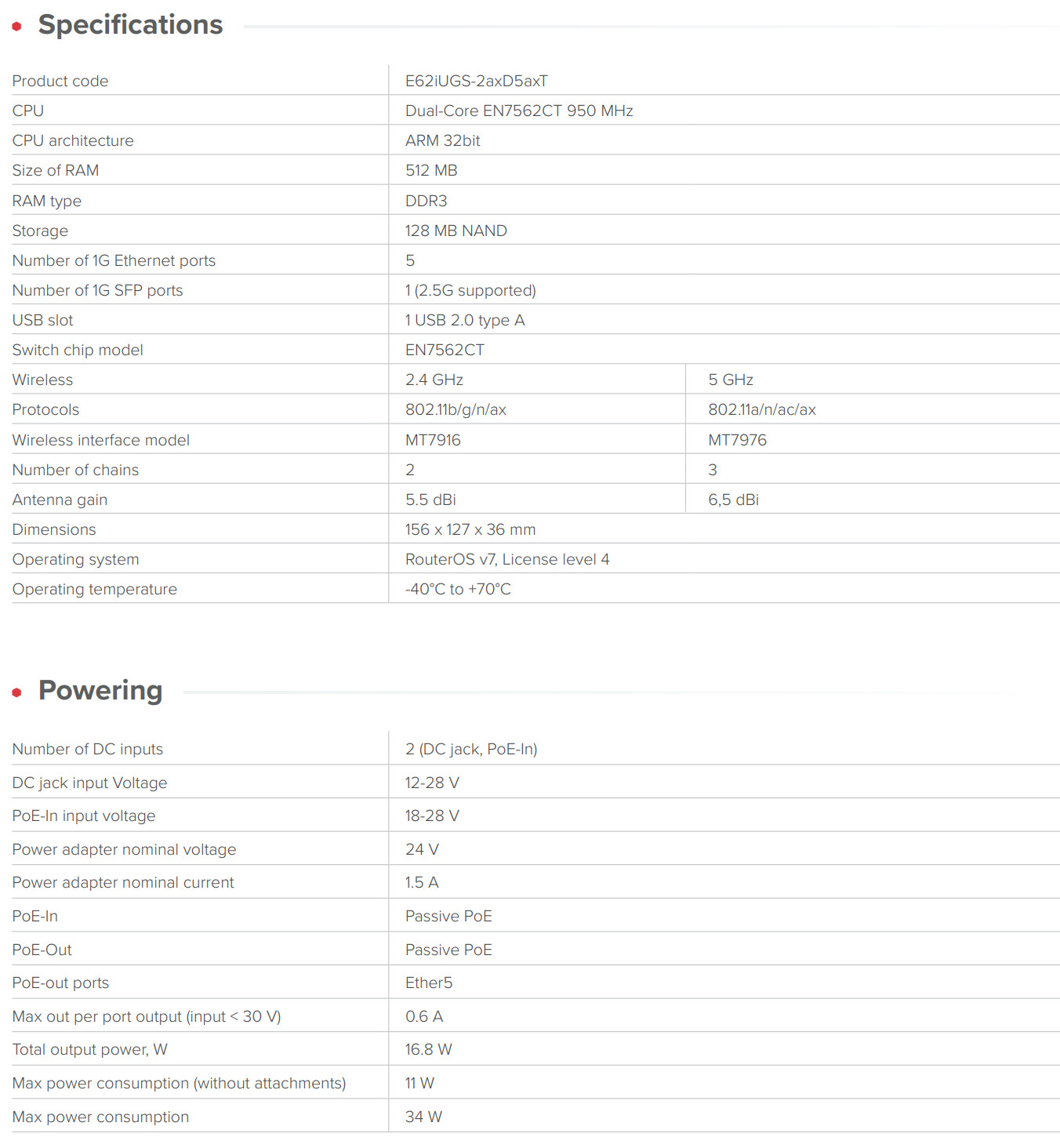

Specifications

• Product codeE62iUGS-2axD5axT
• ArchitectureARM 32bit
• CPUEN7562CT
• CPU core count2
• CPU nominal frequency950 MHz
• CPU Threads count2
• Switch chip modelEN7523
• RouterOS license4
• Operating SystemRouterOS v7
• Size of RAM512 MB
• Storage size128 MB
• Storage typeNAND
• MTBFApproximately 100'000 hours at 25C
• Tested ambient temperature-40°C to 70°C

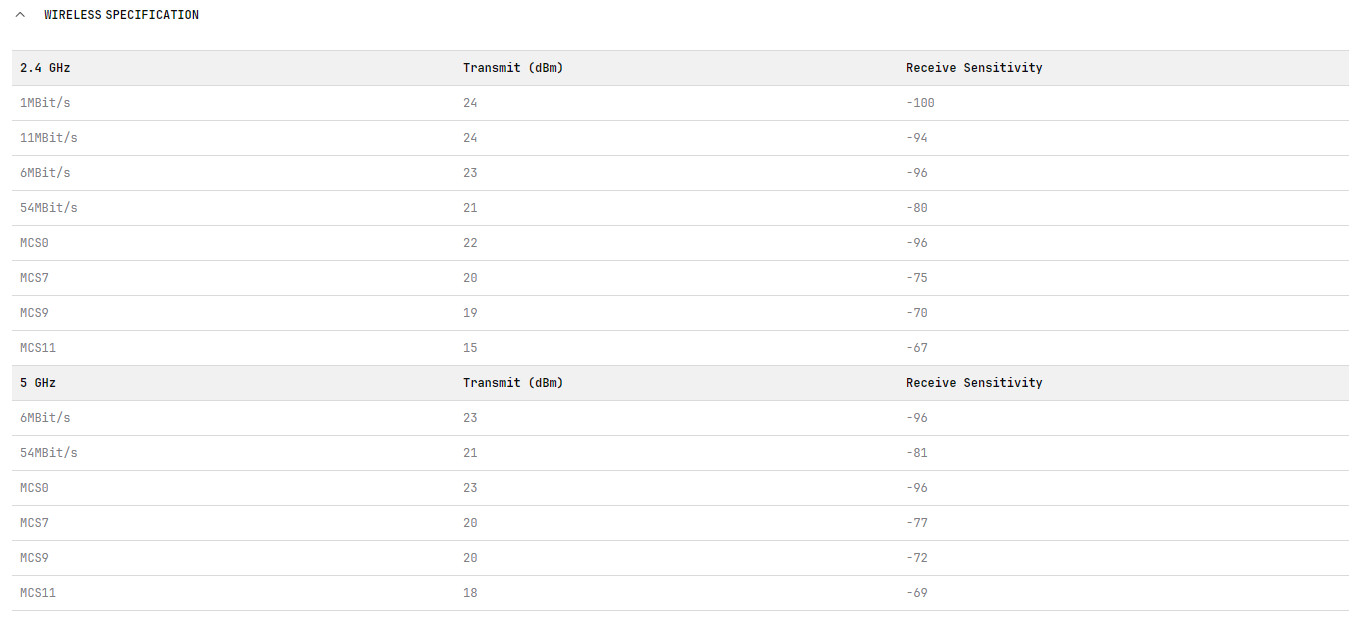

Wireless capabilities

• Wireless 2.4 GHz Max data rate574 Mbit/s
• Wireless 2.4 GHz Number of chains2
• Wireless 2.4 GHz standards802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz5.5
• Wireless 2.4 GHz chip modelMT7916
• Wireless 2.4 GHz generationWi-Fi 6
• Wireless 5 GHz Max data rate1800 Mbit/s

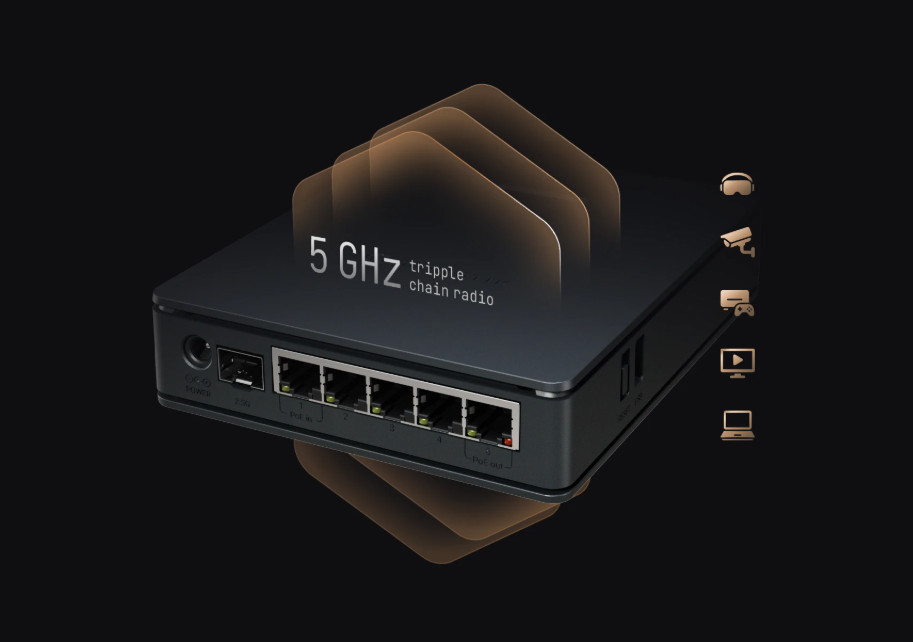

• Wireless 5 GHz Number of chains3
• Wireless 5 GHz standards802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz6.5
• Wireless 5 GHz chip modelMT7976
• Wireless 5 GHz generationWi-Fi 6
• WiFi speedAX2400

Ethernet

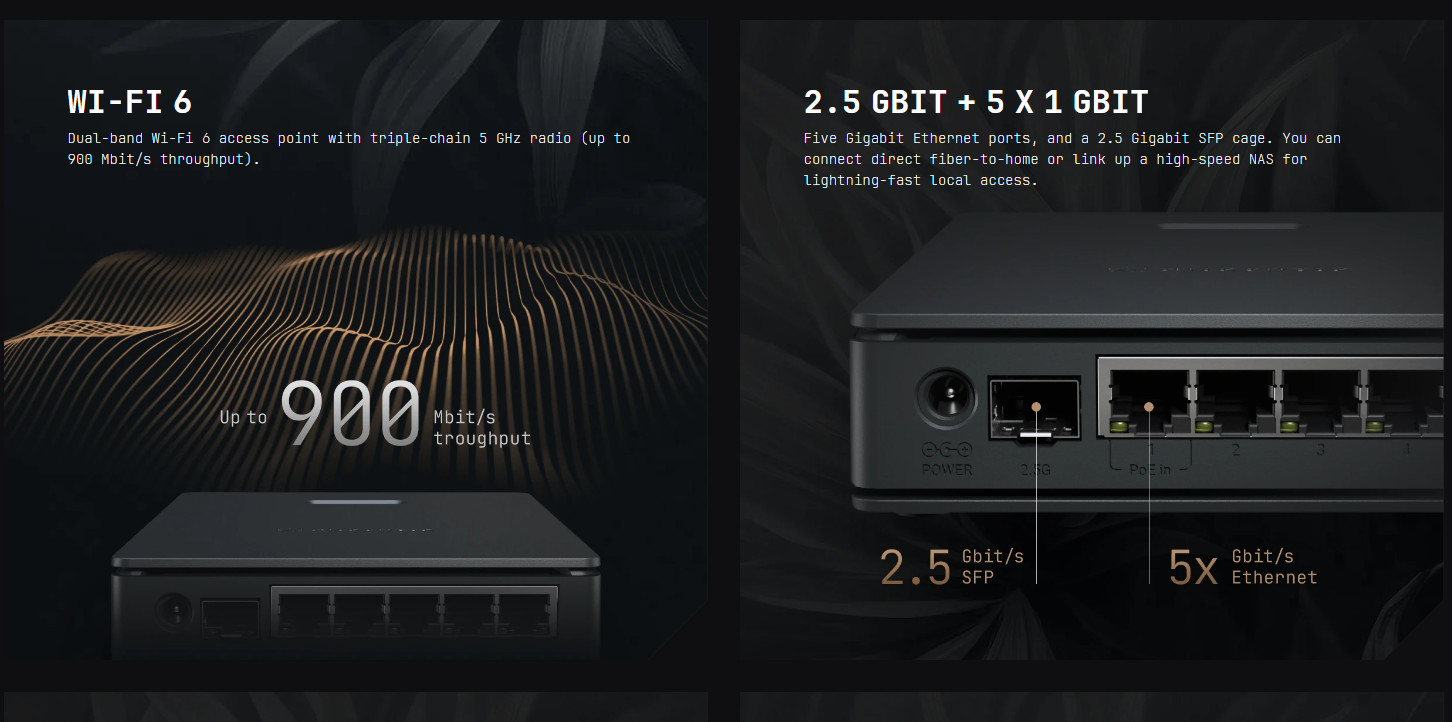

• 10/100/1000 Ethernet ports5
• Number of 1G Ethernet ports with PoE-out1

Fiber

• SFP ports1 (2.5G supported)

Peripherals

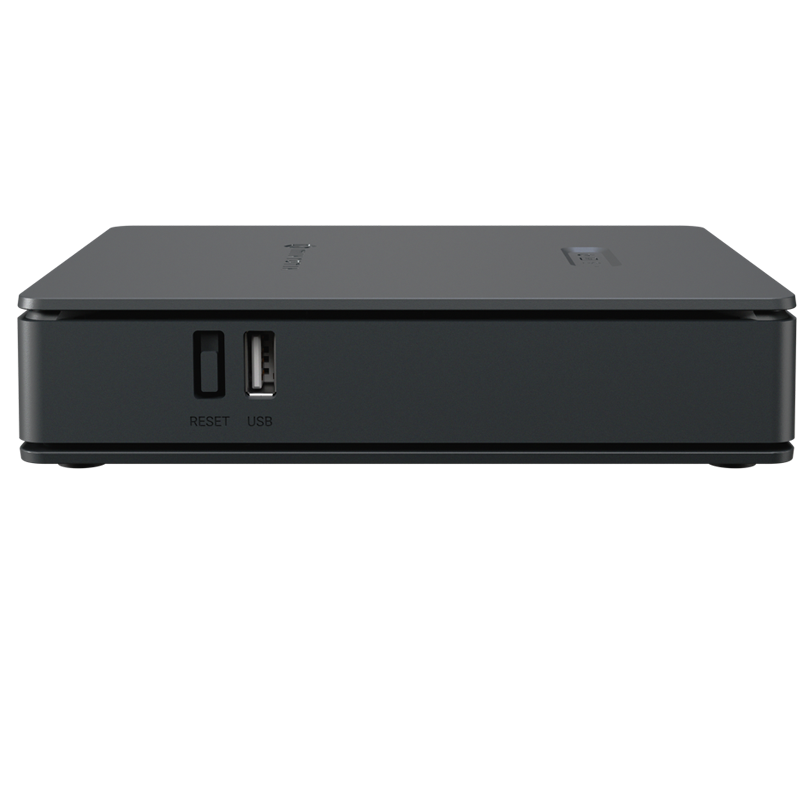

• Number of USB ports1
• USB Power ResetYes
• USB slot typeUSB type A
• Max USB current (A)1

Powering

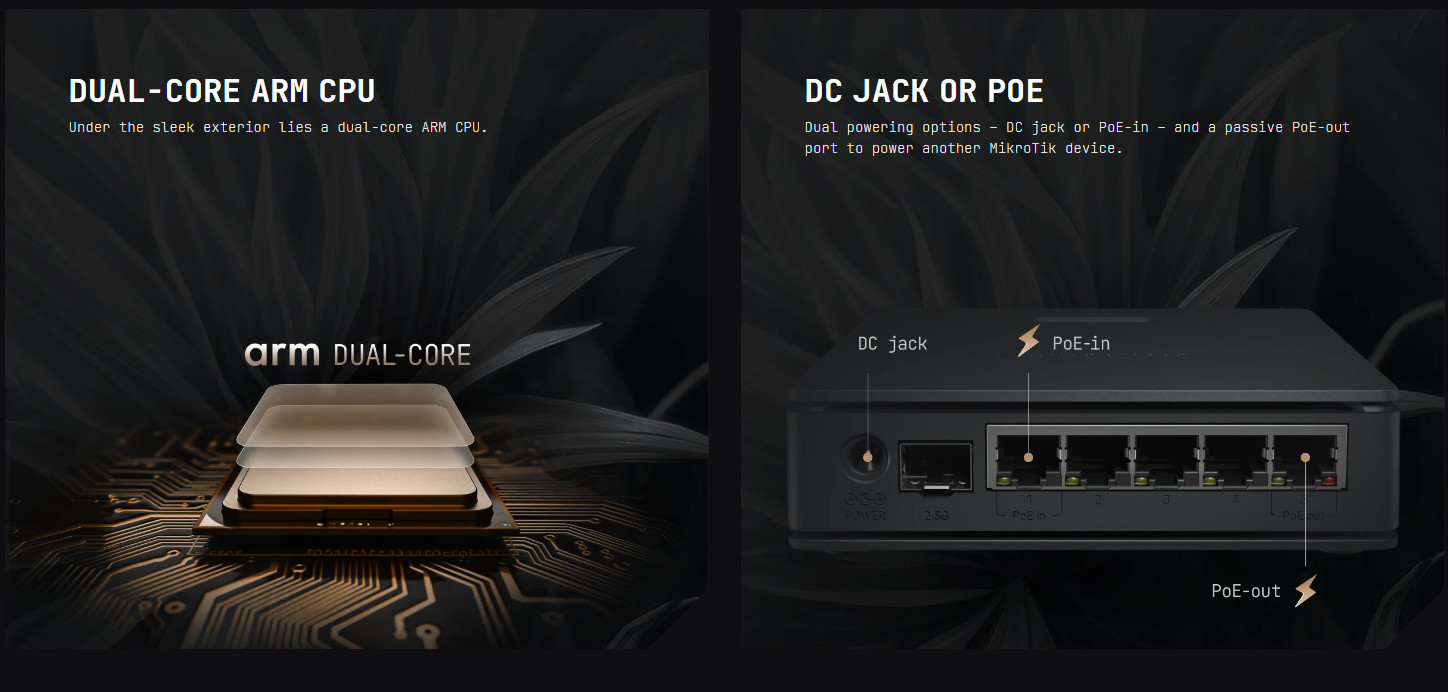

• Number of DC inputs2 (DC jack, PoE-IN)
• DC jack input Voltage12-28 V
• Max power consumption34 W
• Max power consumption without attachments11 W
• PoE inPassive PoE
• Cooling typePassive
• PoE in input Voltage18-28 V

PoE-out

• PoE-out portsEther5
• PoE outPassive PoE
• Low voltage PoE-Out current limit0.6 A
• Max total out (A)0.6 A
• Total output current0.6
• Total output power16.8

• Certification & Approvals

• CertificationCE, FCC, IC, EAC, ROHS
• IP20

• Other

• CPU temperature monitor Yes

  Note

  The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.



  Ethernet test results

  E62iUGS-2axD5axT		EN7562CT 1G all port test
  Mode	Configuration	1518 byte		512 byte		64 byte
  		kpps	Mbps	kpps	Mbps	kpps	Mbps
  Bridging	none (fast path)	340.3	4132.4	389	1593.5	402.6	219
  Bridging	25 bridge filter rules	190.6	2315.1	197	806.8	193.9	105.5
  Routing	none (fast path)	300.3	3646.6	340.5	1394.7	342.2	186.1
  Routing	25 simple queues	173.1	2102.6	174.3	713.8	171.9	93.5
  Routing	25 ip filter rules	117.8	1430.3	121.6	498.1	117	63.6
