Managed UniFi Devices

30+

Managed Cameras

Simultaneous Users Connected

300+

Max. WAN Port Count

Default WAN Ports

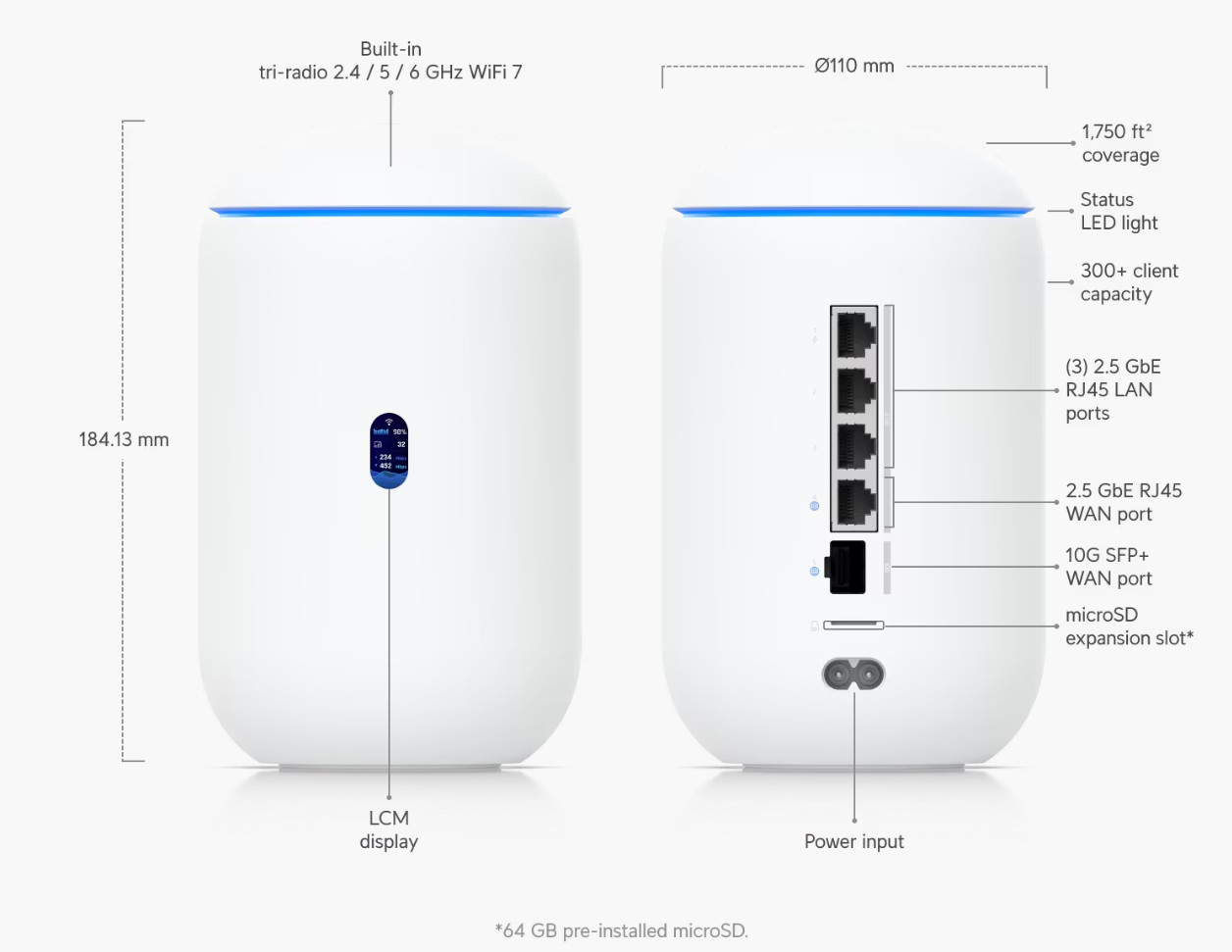

Port Layout

2.5 GbE RJ45

10G SFP+

IDS/IPS Throughput

Form Factor

Compact desktop

Coverage Area

160 m² (1,750 ft²)

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz

5.7 Gbps

5 GHz

4.3 Gbps

2.4 GHz

688 Mbps

MIMO

6 GHz

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. TX Power

6 GHz

24 dBm

5 GHz

26 dBm

2.4 GHz

23 dBm

Hardware

NVR Storage

Pre-installed 64GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget

15.4W

Max. PoE Wattage per Port by PSE

PoE

15.4W

Voltage Range PoE Mode

44-57V

Max. Power Consumption

26W (Excluding PoE output)

Supported Voltage Range

100—240V AC

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

LCM Display

0.96" status display

Management

Ethernet Bluetooth

Software

UniFi Network

Version 9.0.108 and later
