DAG1000-8O

>>>รับประกันการใช้งาน 2 ปี<<<

ข้อมูลอุปกรณ์

• DAG1000 FXO Analog VoIP Gateway Datasheet


DAG1000-8O FXO VoIP analog gateway are IP-based access gateway. Provide a low cost, simple operation VoIP solutions for small business, the family office, remote office and branch businesses.

Application

Features

• Primary and secondary SIP account
• Flexible setup FXO port group
• IP trunk
• Flexible routing and manipulati
• Data/Voice/Management VLAN
• Voice and FAX all in one
• SNMP
• Firmware update automatically /configure update

Specification

Physical Interfaces

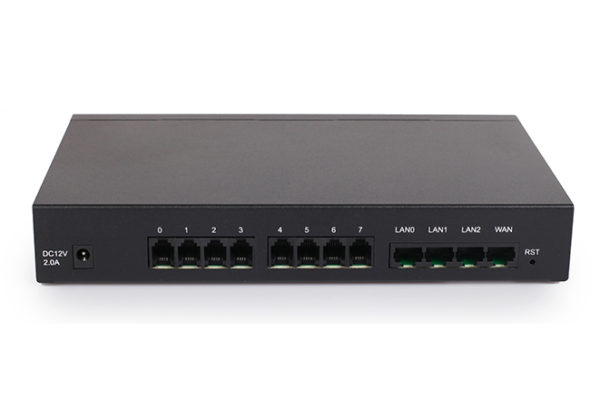

• Telephone interface: 8FXO, RJ-11
• Ethernet Interface: 4*RJ-45 10/100 Base-Tx, RJ-45

Voice & Fax

• G.711A/U law, G.723.1, G.729A/B
• Comfort Noise Generation(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation(G.168)
• Adaptive (Dynamic) Jitter Buffer
• Programmable Gain Control
• T.38/Pass-through/Modem FAX mode,Up to 14.4kbps
• DTMF mode: Signal/RFC2833/INBAND

FXO Port

• Busy tone detection
• No current take out stitches detection
• Voice interrupted detection
• One stage dialing
• Two stage dialing
• PSTN exterior ports polling
• Polarity Reversal
• FAS（Fake billingcorrection ）
• DC/AC impedance config
• Calls detection (BellcoreType 1&2,

Protocol

• SIP V2.0 (RFC 3261,3262,3264)
• IMS/3GPP
• SDP (RFC 2327)
• REFER (RFC 3515)
• RTP/RTCP (RFC 1889,1890)
• STUN (RFC 3489)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• TFTP/HTTP/HTTPS
• DNS/DNS SRV (RFC 1706/RFC 2782)
• VLAN 802.1P/802.1Q

Private Service

• Inquire LAN port IP *158#
• Inquire WAN port IP *159#
• Get IP address *150*
• Restart *111#
• Factory reset *166*000000#

Maintain & Upgrade

• Web based configuration
• Telnet configuration
• Data backup/restore
• Support English and Chinese language
• Firmware upgrade by TFTP
• Web & telnet login password modify
• Factory reset
• Automatic time synchronization
• SNMP
• IVR local maintenance management

Physical propertiesPacking

• Power: input:100-240V,50-60Hz,1.2A
• Max8FXO output: 12VDC,1A
• powerconsumption(W): 8FXO:20
• Temperature(operation): 0 ℃~ 45 ℃ (storage): -20 ℃~80 ℃
• Operation Humidity: 10%-90% no condensation
• Dimension(w/D/H):  242*152*40mm 1kg

Call & Routing

• FXO port group
• IP Trunk
• Primary and secondary SIP account
• 32 inbound routing
• 32 outbound routing
• Number manipulation
• Dial plan set Call

Network Features

• NAT (Rout& Bridge)
• Static IP, PPPoE, DHCP
• DHCPserver
• MAC address clone
• DMZ
• IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP, Ping, NTP, SNTP, Http, DNS, Tracert
• Static/dynamic ARP

Homologation

• CE,FCC
• Elastix  / Broadsoft
