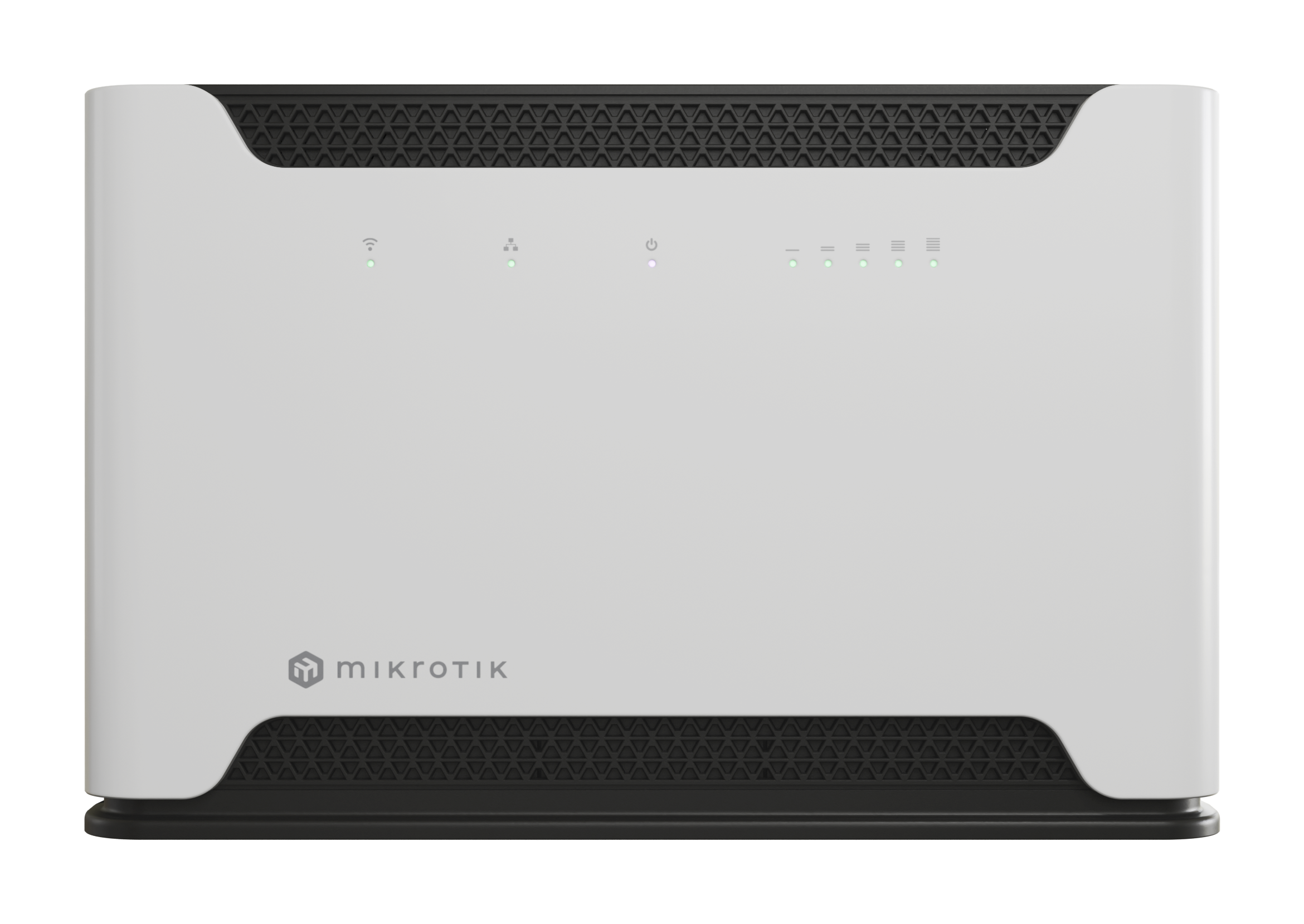

Chateau LTE7 [D53G-5HacD2HnD-TC&R11e-LTE7]

>>>รับประกันการใช้งาน 2 ปี<<<

Specification

• Product codeD53G-5HacD2HnD-TC&R11e-LTE7
• ArchitectureARM 32bit
• CPUIPQ-4019
• CPU core count4
• CPU nominal frequency448-896 (auto) MHz
• CPU Threads count4
• Switch chip modelIPQ-4019
• RouterOS license4
• Operating SystemRouterOS v7
• Size of RAM256 MB
• Storage size16 MB
• Storage typeFLASH
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-40°C to 70°C
• Number of DC inputs1 (DC jack)
• DC jack input Voltage12-28 V
• Max power consumption20 W
• Max power consumption without attachments14.1 W
• Cooling typePassive
• 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
• 3G bands1 (2100 MHz)
  5 (850 MHz)
  8 (900 MHz)
  3 (1800 MHz)
• LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
• MIMO DL2x2
• MIMO UL1x1
• LTE FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)
• LTE TDD bands38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)
• TAC35312597

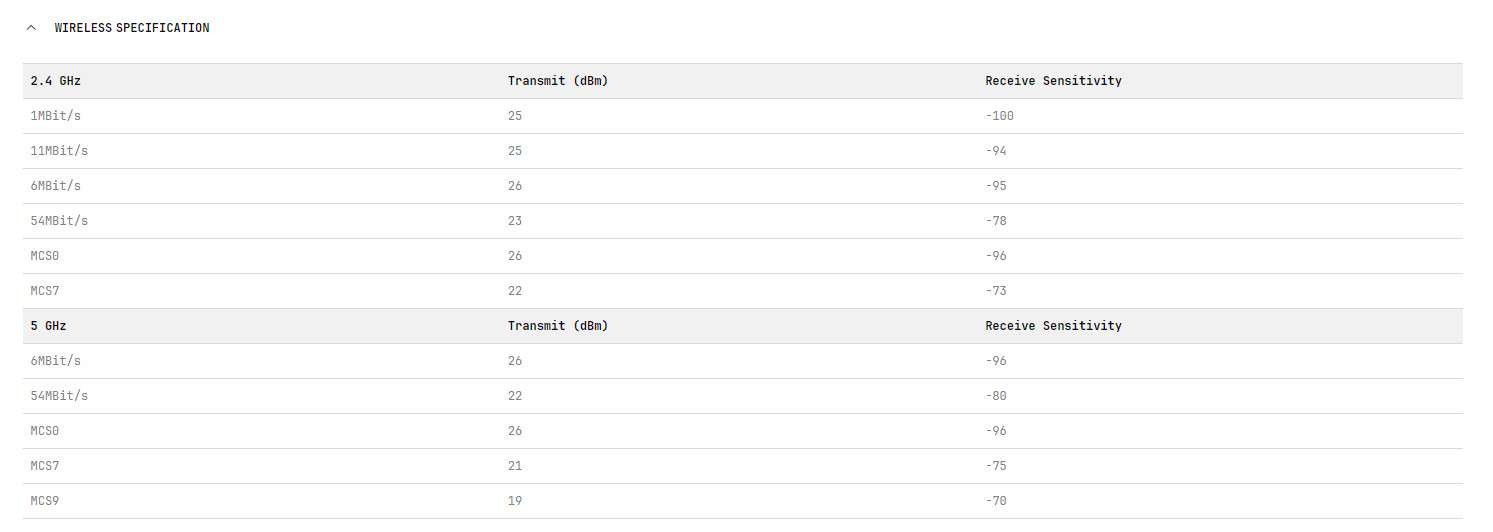

• Wireless 2.4 GHz Max data rate300 Mbit/s
• Wireless 2.4 GHz Number of chains2
• Wireless 2.4 GHz standards802.11b/g/n
• Antenna gain dBi for 2.4 GHz2
• Wireless 2.4 GHz chip modelIPQ-4019
• Wireless 2.4 GHz generationWi-Fi 4
• Wireless 5 GHz Max data rate867 Mbit/s
• Wireless 5 GHz Number of chains2
• Wireless 5 GHz standards802.11a/n/ac
• Antenna gain dBi for 5 GHz4
• Wireless 5 GHz chip modelIPQ-4019
• Wireless 5 GHz generationWi-Fi 5

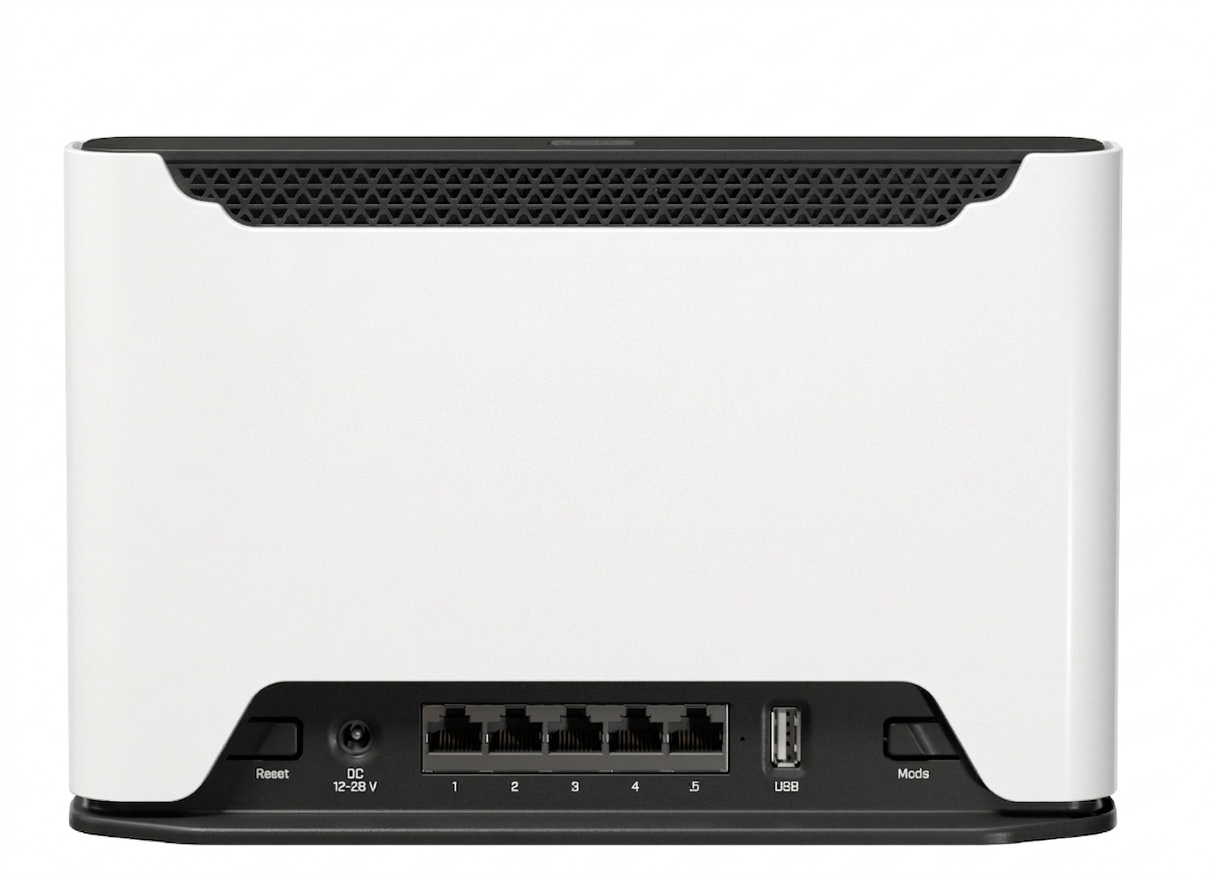

• 10/100/1000 Ethernet ports5

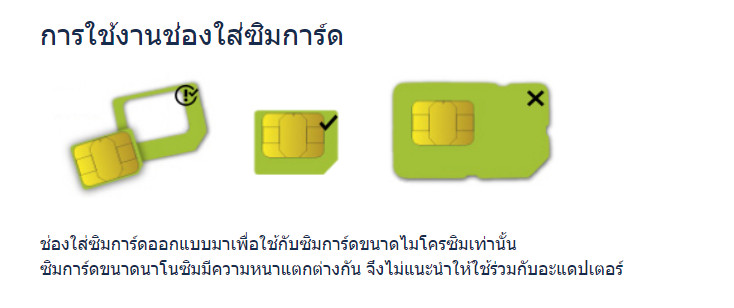

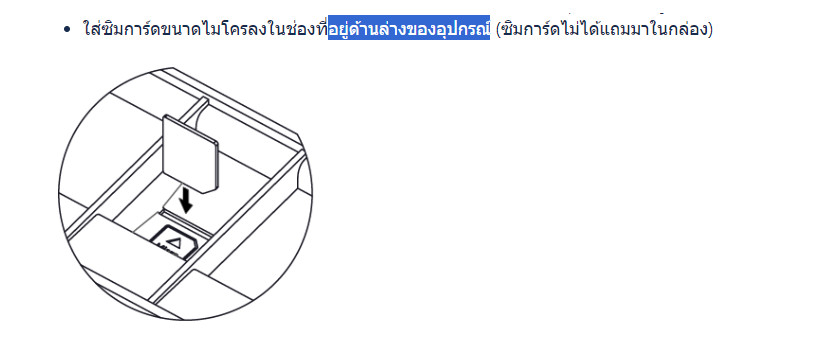

• Number of SIM slots1 Modem (Micro SIM)
• Number of USB ports1
• USB Power ResetYes
• USB slot typeUSB type A
• Max USB current (A)1
• Mode buttonYes
• CertificationCE, EAC, ROHS
• IP20
•
  The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
