Overview

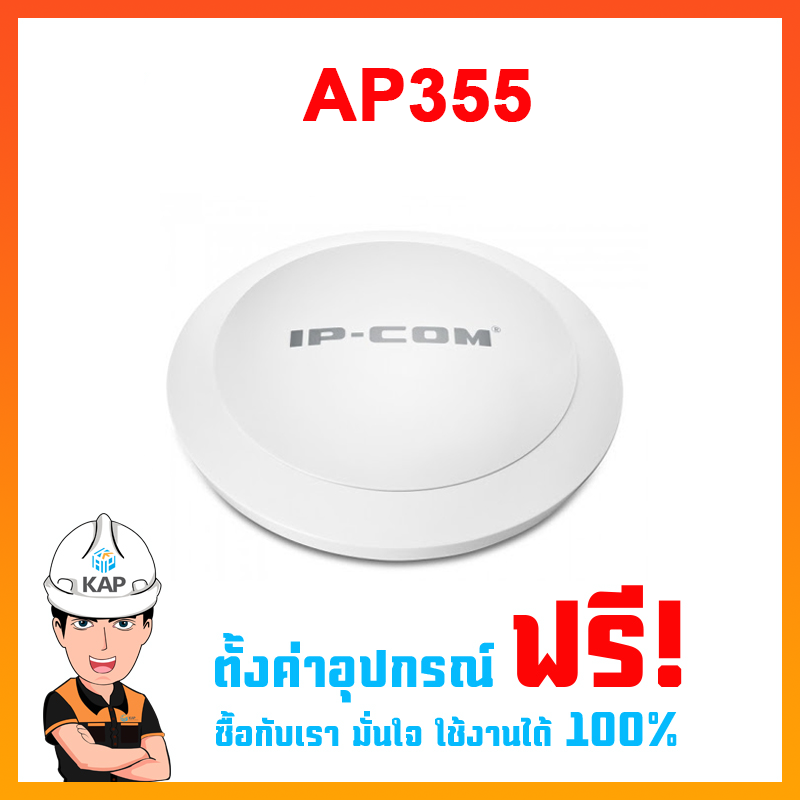

IP-COM AP355 Wireless Access Point Dual-Band 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุด 1,200Mbps Port Lan ความเร็ว Gigabit รองรับการทำ Access Controller รองรับ POE มาตรฐาน  802.3at

Model

AP355

Mounting

Ceiling and Wall Mount

Dimensions

200*200*30mm(W x H x L)

Application Scenarios

Medium-Sized Enterprise offices, Shopping Malls, and Restaurants etc

Frequency Bands

2.4GHz/5GHz

PHY Data Rates

1200Mbps

Wi-Fi Standards

IEEE 802.11n/g/b, 802.11ac/n/a

Interfaces

1*10/100/1000Mbps PoE/LAN port, 1*DC Power Jacket

Buttons

1*RESET

Antennas

2x Integrated dualband,  Omni-directional, 4dBi gain

Max Power Consumption

17W

LED Indicators

PWR, 2.4G,5G

Power Supply

DC Input: 12 VDC 1.5A
PoE: 802.3at compliant

Receiver Sensitivity

MCS0: -88dBm
MCS7: -72dBm

Operating mode

AP,WDS,Client+AP

WiFi Radio

Enable or Disable

BSSIDs

Up to 8 (2.4 GHz), Up to 4(5 GHz)

SSID hiding

Enable or Disable

User Isolation

Support

Clients Limit

Connected user number limitation for every SSID

VLANs

802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment

RSSI Threshold

Support

Fast Roaming

Support

Power Save (APSD)

Support

Multicast to unicast Conversion

Support

WMM Capable

Support

Traffic Shaping

Support

Airtime Fairness

Support

Band Steering

Support

Spectrum Analysis

Support

Automatic Channel control

Support

Adjustable Power

Adjustable step by 1dBm

Access Control

Connect limitation based on mac address

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

DHCP Server

Support

VPN Pass-Through

PPTP,L2TP

Network Diagnoses

Ping

Time&Date Setting

Support

WiFi Client Association Status

Support

System Monitoring

Status Statistic and Event Log

Backup Configuration

Support

Restore Configuration

Support

Reset Device

Support from Web UI or AP Controller

Username Management

Support from Web UI or AP Controller

Firmware Upgrade

Support from Web UI or AP Controller

Centralized Management

Managed by AC2000, AC3000

Operating Temperature

-10~40

Storage Temperature

-30~70

Operating Humidity

10%-90% (non-condensing)

Storage Humidity

10%-90%  (non-condensing)

Default Login IP

192.168.0.254

Default User Name

admin

Default Password

admin

Certifications

FCC/CE/RoHS
